Unit · AXIAL-PISTON MOTOR
A6VM80HZ/60W-PZB010B-SR909442359
Axial piston motor Bosch Rexroth series A6VM, type code A6VM80HZ/60W-PZB010B-S, material number R909442359. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909442359
- Type code
- A6VM80HZ/60W-PZB010B-S
- Group
- A6VM 80
- Edition
- 06/2020

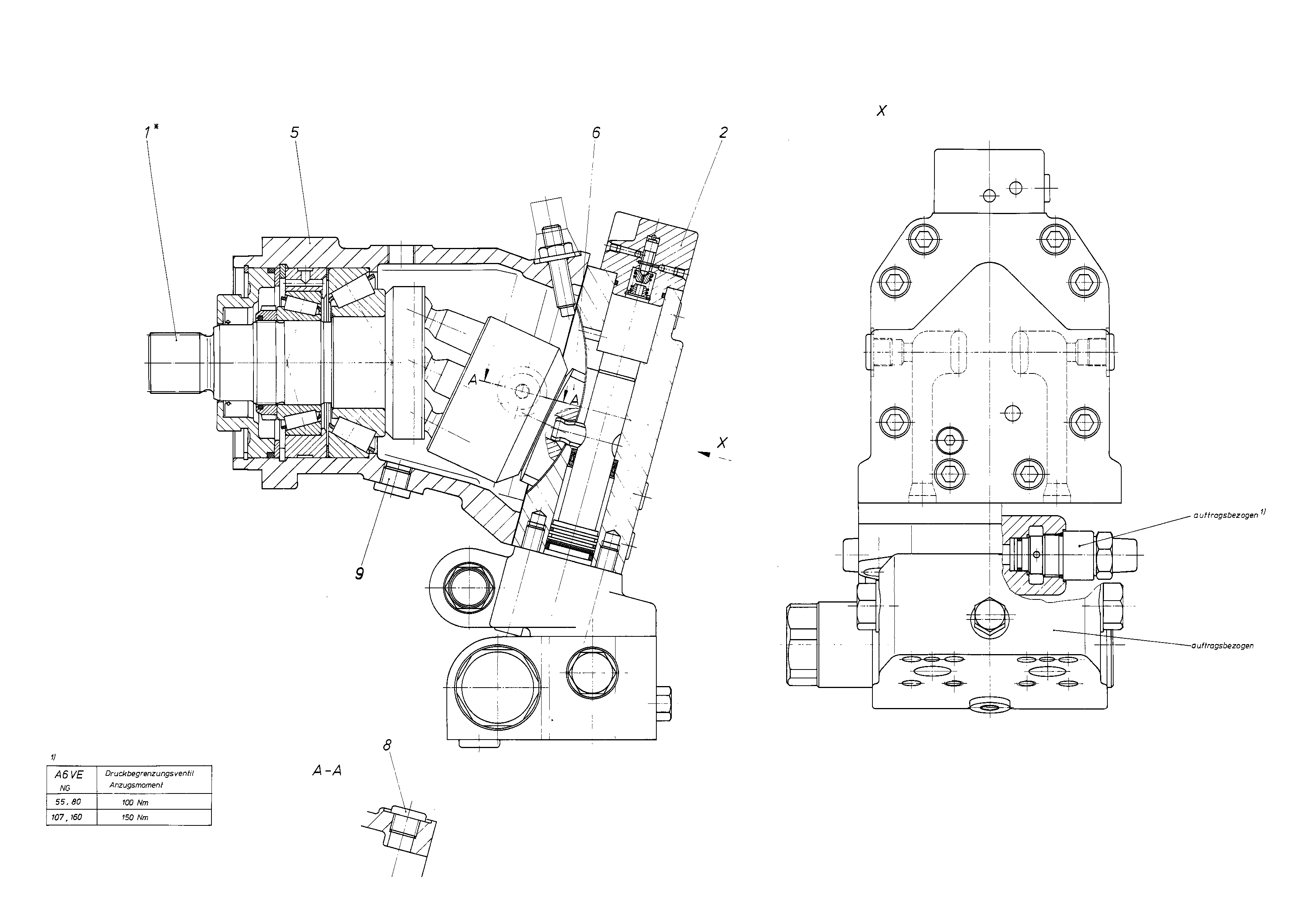

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420626 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442360 | CONTROL Assembly parts list →L | 1 | ||
| 5 | R909444200 | HOUSING | 1 | |
| R909921787 | CONTROL LENS | 1 | ||
| 8 | R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 80 |
| Control device | Two-point control, hydraulic | HZ |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
