Unit · AXIAL-PISTON MOTOR
AA6VM80HD1D/60W-PSC520B-SR909442812
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80HD1D/60W-PSC520B-S, material number R909442812. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 145 psi (10 bar) (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft bidirectional (W). Drive shaft: splined shaft ANSI B92.1a (S). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909442812
- Type code
- AA6VM80HD1D/60W-PSC520B-S
- Group
- A6VM 80
- Edition
- 06/2020

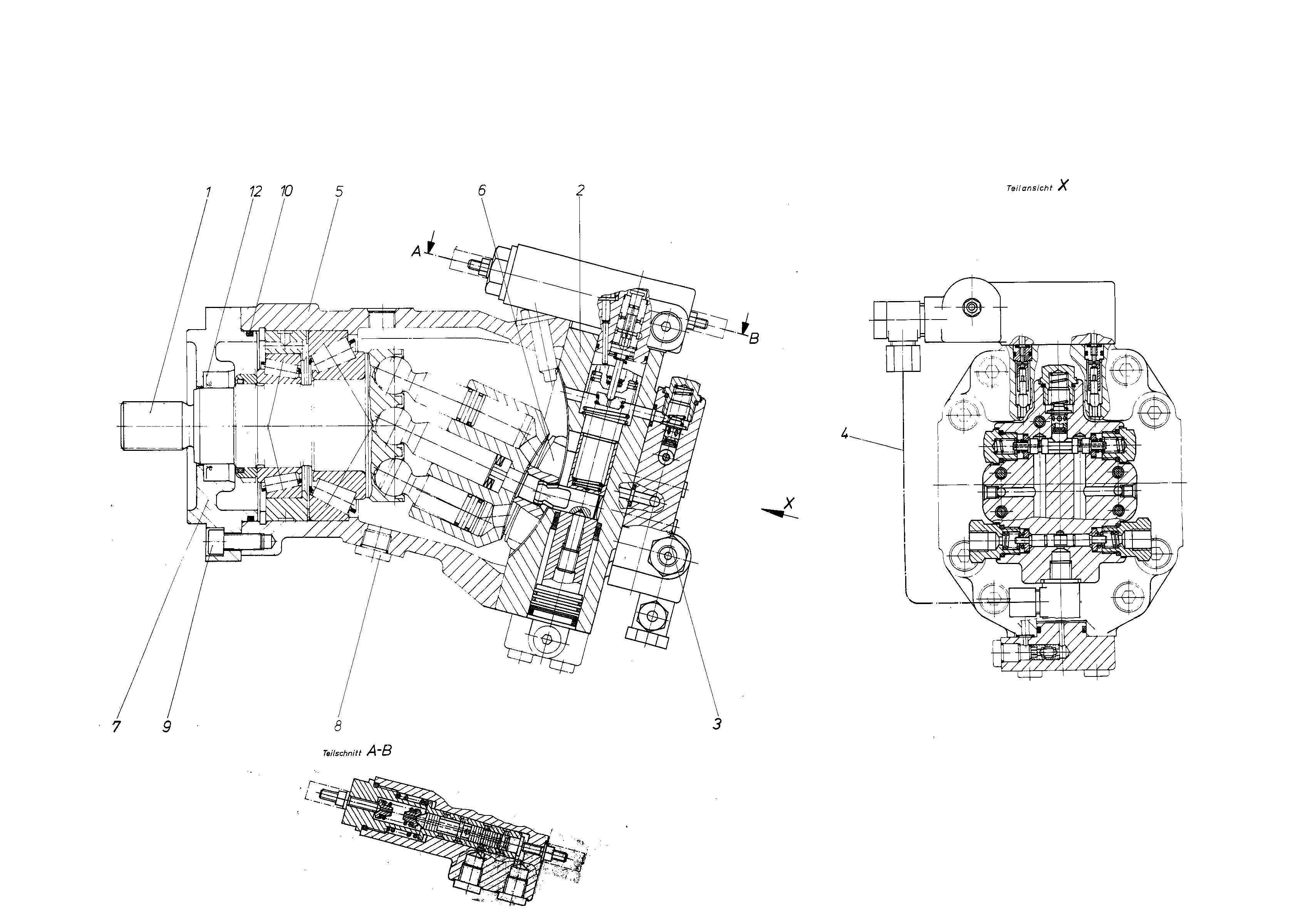

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909414615 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909442834 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909442833 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R909442849 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909414173 | HOUSING | 1 | ||
| 6 | R909921787 | CONTROL LENS | 1 | |
| R909414115 | FLANGE | 1 | ||
| 8 | R909153339 | SCREW PLUGD | 1 | |
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| 10 | R909152647 | O-RINGD | 1 | |
| 12 | R909831178 | SHAFT SEALING RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 145 psi (10 bar) | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 52 | 520 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
