Unit · AXIAL-PISTON PUMP
AA11VLO200HDDP/10R-NXDXXKXX-SR909446111
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO200HDDP/10R-NXDXXKXX-S, material number R909446111. Nominal size: NG 200. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Mounting flange: SAE J744 ‒ 4-hole (D). Standard/special version: special version (S).
- Number
- R909446111
- Type code
- AA11VLO200HDDP/10R-NXDXXKXX-S
- Group
- A11VLO 200
- Edition
- 06/2020

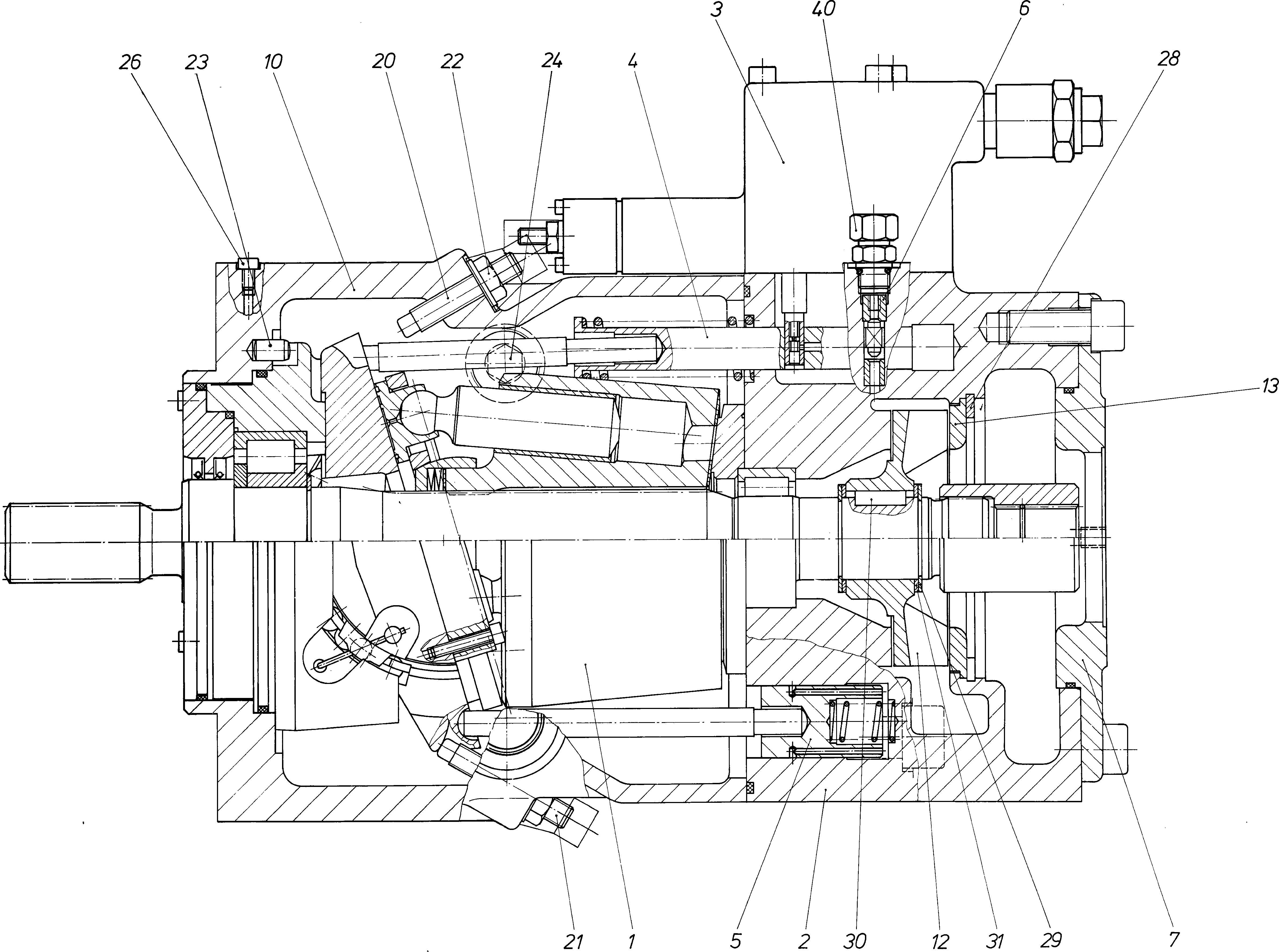

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441450 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434547 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R909446112 | REGULATOR Assembly parts list →L | 1 | ||
| R909437659 | CONTROL Assembly parts list →L | 1 | ||
| R909434737 | CONTROL Assembly parts list →L | 1 | ||
| R902220058 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909434967 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909445878 | HOUSING | 1 | ||
| R909440149 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909432481 | SEALING DISK | 1 | ||
| R909085976 | SETSCREW | 1 | ||
| R909153075 | SETSCREW | 1 | ||
| R909152459 | SEALING NUT | 2 | ||
| R913009671 | STRAIGHT PIN | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909086465 | SOCKET HEAD CAP SCREW | 1 | ||
| R909830077 | RETAINING RING | 1 | ||
| R909083362 | RETAINING RING | 2 | ||
| R909445547 | PARALLEL KEY | 1 | ||
| R909086230 | SHIM RING | 1 | ||
| R909086231 | SHIM RING | 1 | ||
| R909150315 | SHIM RING | 1 | ||
| 98 | R902221483 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 200 | 200 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Standard/special version | Special version | S |
