Unit · AXIAL-PISTON PUMP
A8VO28SR/60R3-NZG05K01R909446339

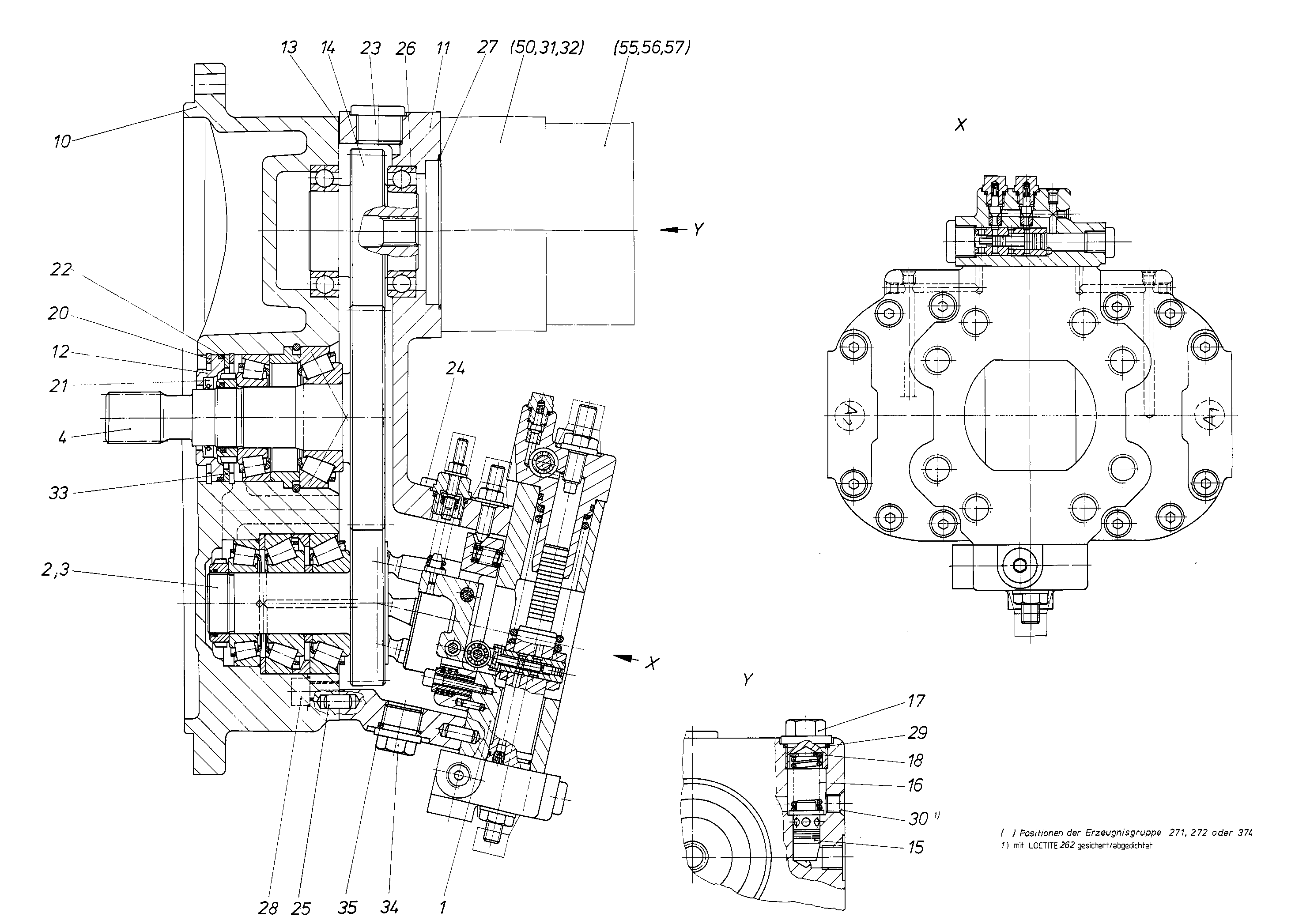

Axial piston pump Bosch Rexroth series A8VO, type code A8VO28SR/60R3-NZG05K01, material number R909446339.
- Number
- R909446339
- Type code
- A8VO28SR/60R3-NZG05K01
- Group
- A8VO 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438970 | CONTROL Assembly parts list →L | 1 | ||
| R909441545 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441546 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441547 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909436880 | GEAR HOUSING | 1 | ||
| R909445129 | ROTARY GROUP HOUSING | 1 | ||
| R909439053 | LOCKING RING | 1 | ||
| R909650392 | SEALD | 1 | ||
| R909443221 | TOOTHED WHEEL | 1 | ||
| R909426804 | VALVE SPOOL | 1 | ||
| R909403718 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R909080515 | WASHER | 2 | ||
| R909083412 | RETAINING RING | 2 | ||
| R909152835 | SHAFT SEALING RINGD | 1 | ||
| R909083788 | O-RINGD | 1 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909085446 | DEEP-GROOVE BALL BEARING | 2 | ||
| R913044774 | O-RINGD | 1 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 13 | ||
| R909083760 | O-RINGD | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 2 | ||
| 2916010114 | WASHER | 2 | ||
| R909087188 | SUPPORTING DISCD | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| 98 | R902166507 | SEAL KIT | 1 |
