Unit · AXIAL-PISTON PUMP
A8VO80LGKH1/60R1-NZG05F00R909446809
Axial piston pump Bosch Rexroth series A8VO, type code A8VO80LGKH1/60R1-NZG05F00, material number R909446809. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Sealing material: NBR (nitrile rubber), FKM (fl uoroelastomer) (N). Service line ports: SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) (5). Auxiliary pump: with integrated auxiliary pump Standard (F). Valves: without valves (only for the version without auxiliary pump, U) (0). Standard / special version: standard version (0).
- Number
- R909446809
- Type code
- A8VO80LGKH1/60R1-NZG05F00
- Group
- A8VO 80
- Edition
- 05/2018

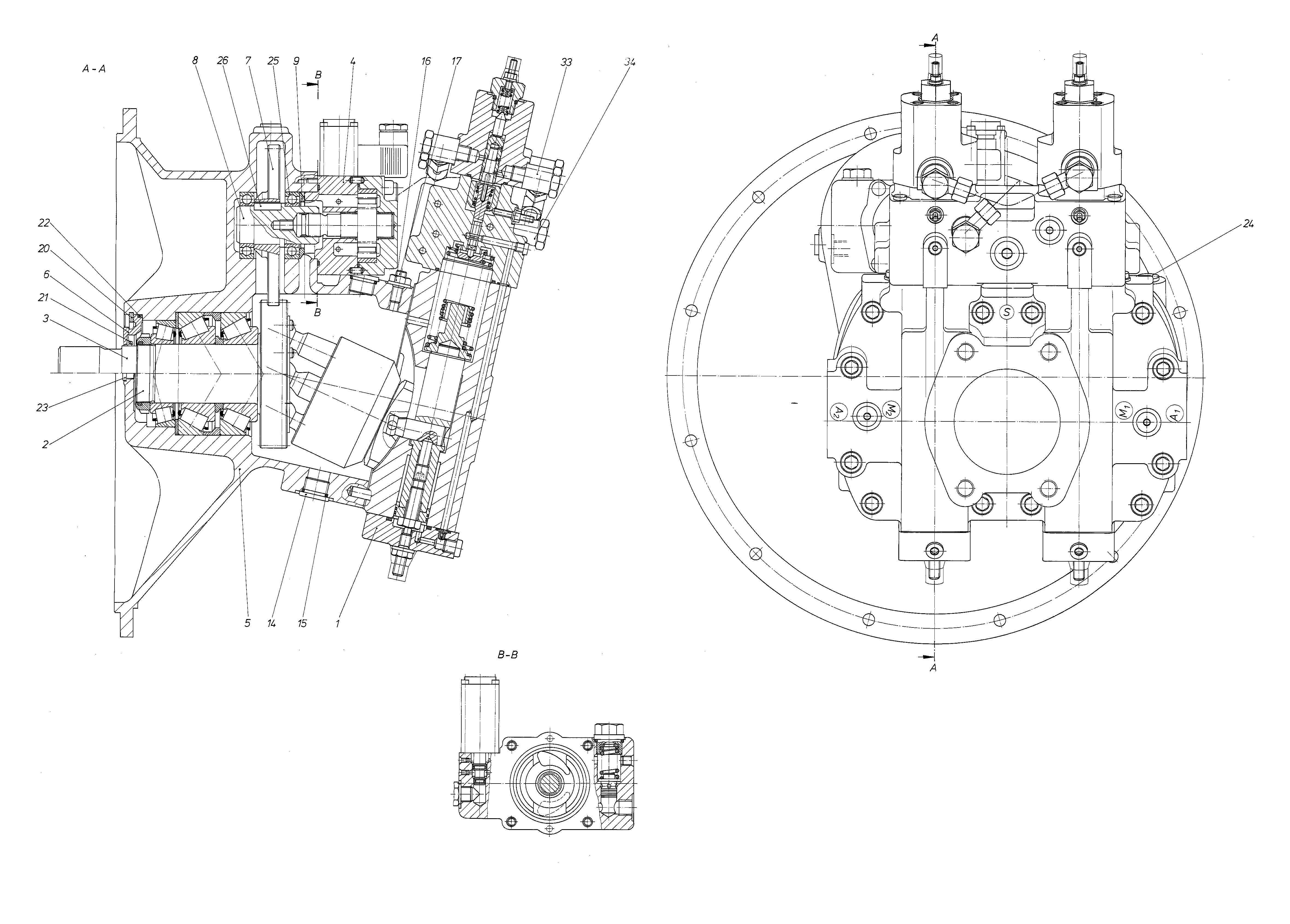

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446217 | CONTROL Assembly parts list →L | 1 | ||
| R909411235 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411234 | ROTARY GROUP Assembly parts list →L | 1 | ||
| — | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909422085 | PUMP HOUSING | 1 | ||
| R909410980 | LOCKING RINGD | 1 | ||
| R909425596 | TOOTHED WHEEL | 1 | ||
| R909422705 | PLUG-IN SHAFT | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083500 | SETSCREW | 1 | ||
| R909083417 | RETAINING RING | 1 | ||
| R909831232 | SHAFT SEALING RINGD | 1 | ||
| R909086948 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909085444 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909083980 | PARALLEL KEY | 1 | ||
| R909446810 | HYDRAULIC LINE Assembly parts list →L | 2 | ||
| R909446811 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Sealing material | NBR (nitrile rubber), FKM (fl uoroelastomer) | N |
| Service line ports | SAE fl ange ports A and A on opposite sides (metric fastening thread) SAE fl ange port S at rear (metric fastening thread) | 5 |
| Auxiliary pump | With integrated auxiliary pump Standard | F |
| Valves | Without valves (only for the version without auxiliary pump, U) | 0 |
| Standard / special version | Standard version | 0 |
