Unit · AXIAL-PISTON PUMP
A7VO107LRGH1/61R-PPB01R909448199
Axial piston pump Bosch Rexroth series A7VO, type code A7VO107LRGH1/61R-PPB01, material number R909448199. Nominal size: NG 107.
- Number
- R909448199
- Type code
- A7VO107LRGH1/61R-PPB01
- Group
- A7VO 107
- Edition
- 06/2020

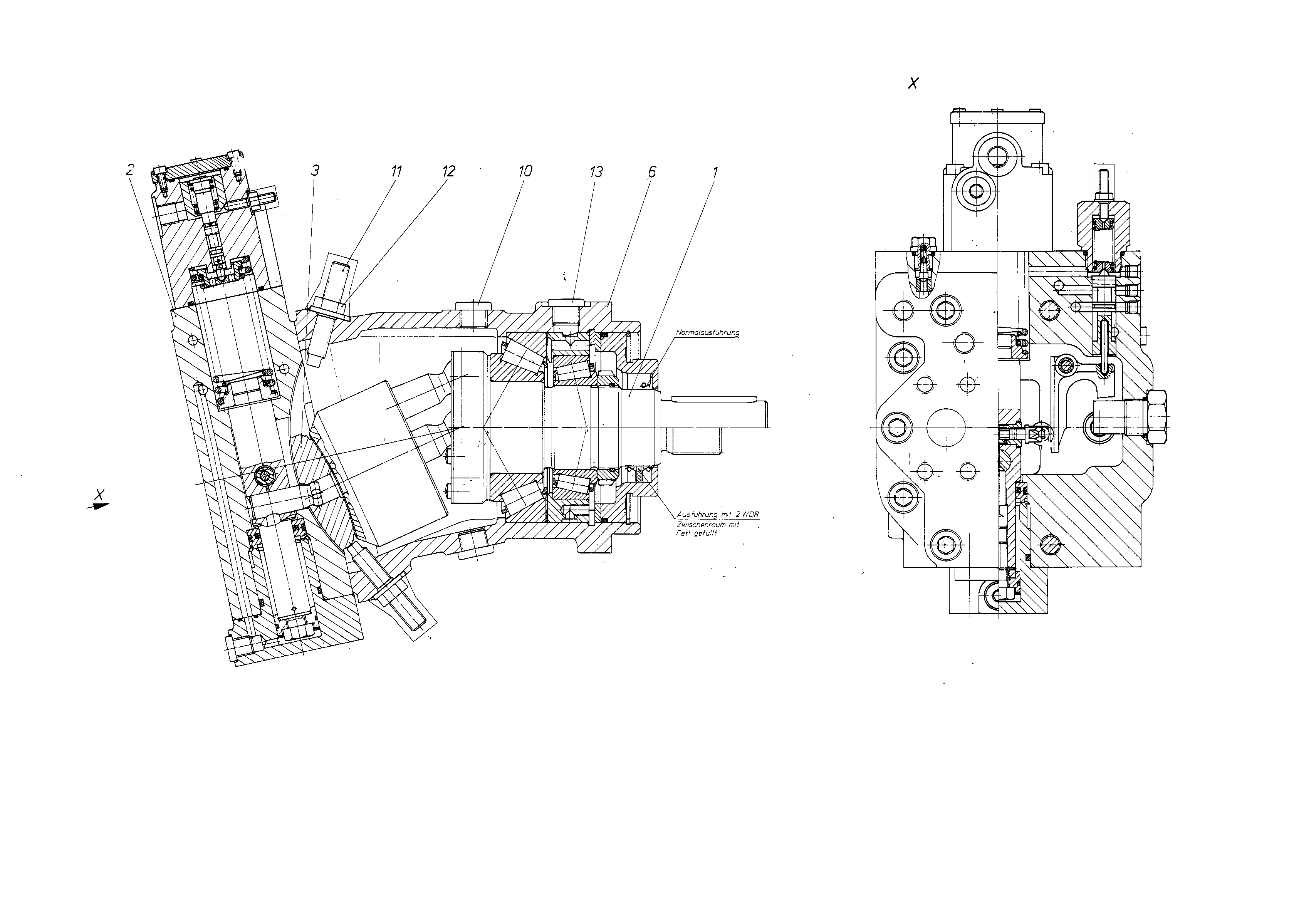

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410499 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909448200 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650453 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| R909425278 | HOUSING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| 11 | R909447152 | SETSCREW Assembly parts list →L | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 107 | 107 | |
| with hydraulic stroke limiter Δp = 10 bar initial position Vg max | LRGH1 | |
| Direction of rotation 250 355 500, with view on drive shaft clockwise | R | |
| Mounting flange 250 355 500, similar to ISO 3019-2 4-hole | B | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 |
