Unit · AXIAL-PISTON MOTOR
A2FM160/61W-VXB027R909603031
Axial piston motor Bosch Rexroth series A2FM, type code A2FM160/61W-VXB027, material number R909603031. Axial piston unit: bent-axis design, fixed (A2F). Operating mode: motor (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Seal material: FKM (fluoroelastomer) (V). Mounting flange: ISO 3019-2 4-hole (B). Working ports: SAE working ports A and B at side, opposite 7 (027).
- Number
- R909603031
- Type code
- A2FM160/61W-VXB027
- Group
- A2FM 160
- Edition
- 04/2023

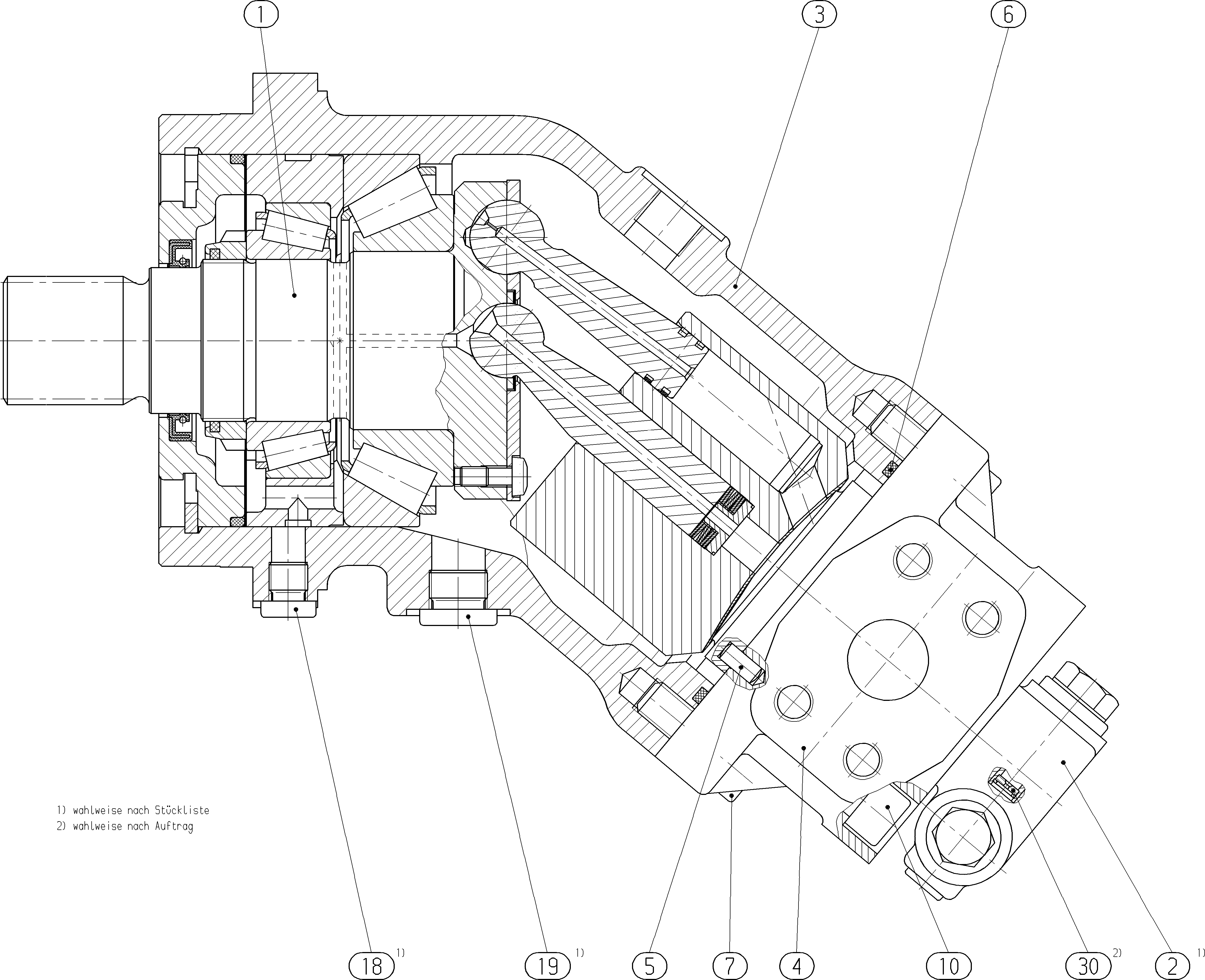

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909603035 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437556 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902040419 | HOUSING | 1 | ||
| R909651865 | CONNECTION PLATE | 1 | ||
| 5 | R913009667 | STRAIGHT PIN | 1 | |
| R909154656 | O-RINGD | 1 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 6 | ||
| R909156654 | SCREW PLUG | 1 | ||
| 98 | R902002220 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed | A2F |
| Operating mode | Motor | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Seal material | FKM (fluoroelastomer) | V |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working ports | SAE working ports A and B at side, opposite 7 | 027 |
