Unit · BASE UNIT
G A2P 500 OV HX5GV1P O.SAUG.BOHR.R910711179
Base unit Bosch Rexroth series A2P, type code GA2P500OVHX5GV1PO.SAUG.BOHR., material number R910711179.
- Number
- R910711179
- Type code
- G A2P 500 OV HX5GV1P O.SAUG.BOHR.
- Group
- BASE UNIT
- Edition
- 05/2020

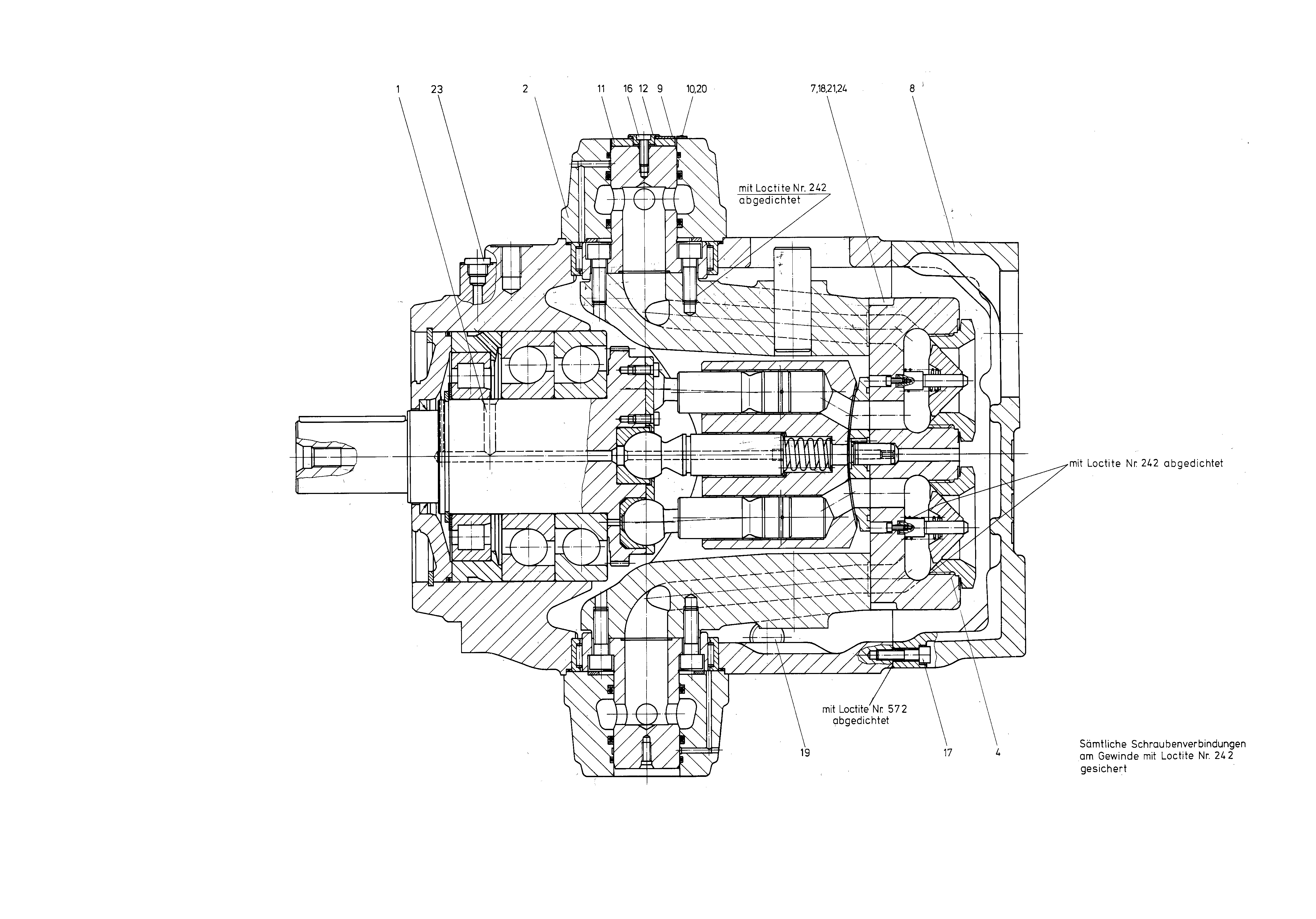

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910948303 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910604836 | PIPE FLANGE Assembly parts list →L | 2 | |
| R910400688 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R910400661 | CONTROL PLATE | 1 | ||
| 8 | R910400645 | HOUSING COVER | 1 | |
| 9 | R910029157 | POINTER | 1 | |
| R910029165 | DIAL | 1 | ||
| 11 | R910604577 | WASHER | 1 | |
| 12 | R910604623 | BUSHING | 1 | |
| 16 | R910265667 | SOCKET HEAD CAP SCREW | 1 | |
| R910109649 | SOCKET HEAD CAP SCREW | 14 | ||
| 18 | R910414751 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909153861 | SCREW PLUGD | 4 | |
| R910101265 | ROUND-HEAD GROOVED PIN | 2 | ||
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| R909153815 | SCREW PLUGD | 1 | ||
| 24 | R910604941 | SEAL RINGD | 4 |
