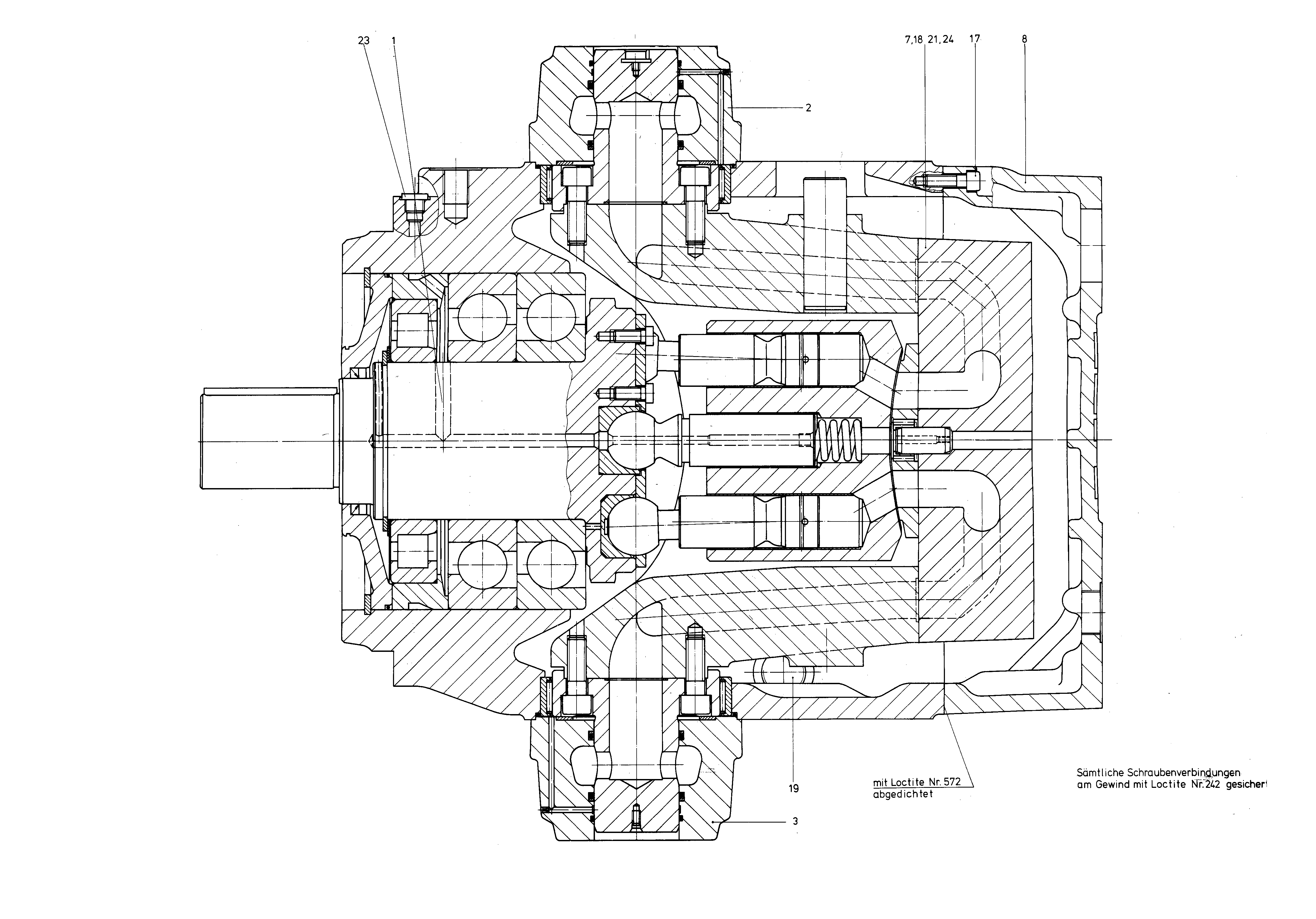

Unit · BASE UNIT
G A2P 1000 OV GX5GV1P FL.FUSS.R910711756
Base unit Bosch Rexroth series A2P, type code GA2P1000OVGX5GV1PFL.FUSS., material number R910711756.
- Number
- R910711756
- Type code
- G A2P 1000 OV GX5GV1P FL.FUSS.
- Group
- BASE UNIT
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910711713 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910687839 | PIPE FLANGE Assembly parts list →L | 1 | ||
| 3 | R910659096 | PIPE FLANGE Assembly parts list →L | 1 | |
| R910657689 | CONTROL PLATE | 1 | ||
| 8 | R910660639 | HOUSING COVER | 1 | |
| 17 | R910109797 | SOCKET HEAD CAP SCREW | 14 | |
| 18 | R910486647 | SOCKET HEAD CAP SCREW | 8 | |
| 19 | R909153862 | SCREW PLUGD | 4 | |
| 21 | R910602051 | STRAIGHT PIN | 2 | |
| 23 | R909153815 | SCREW PLUGD | 1 | |
| 24 | R910659304 | SEAL RINGD | 4 |
