Unit · AXIAL-PISTON PUMP
AA7V-SL500EL51RPFODR910802726

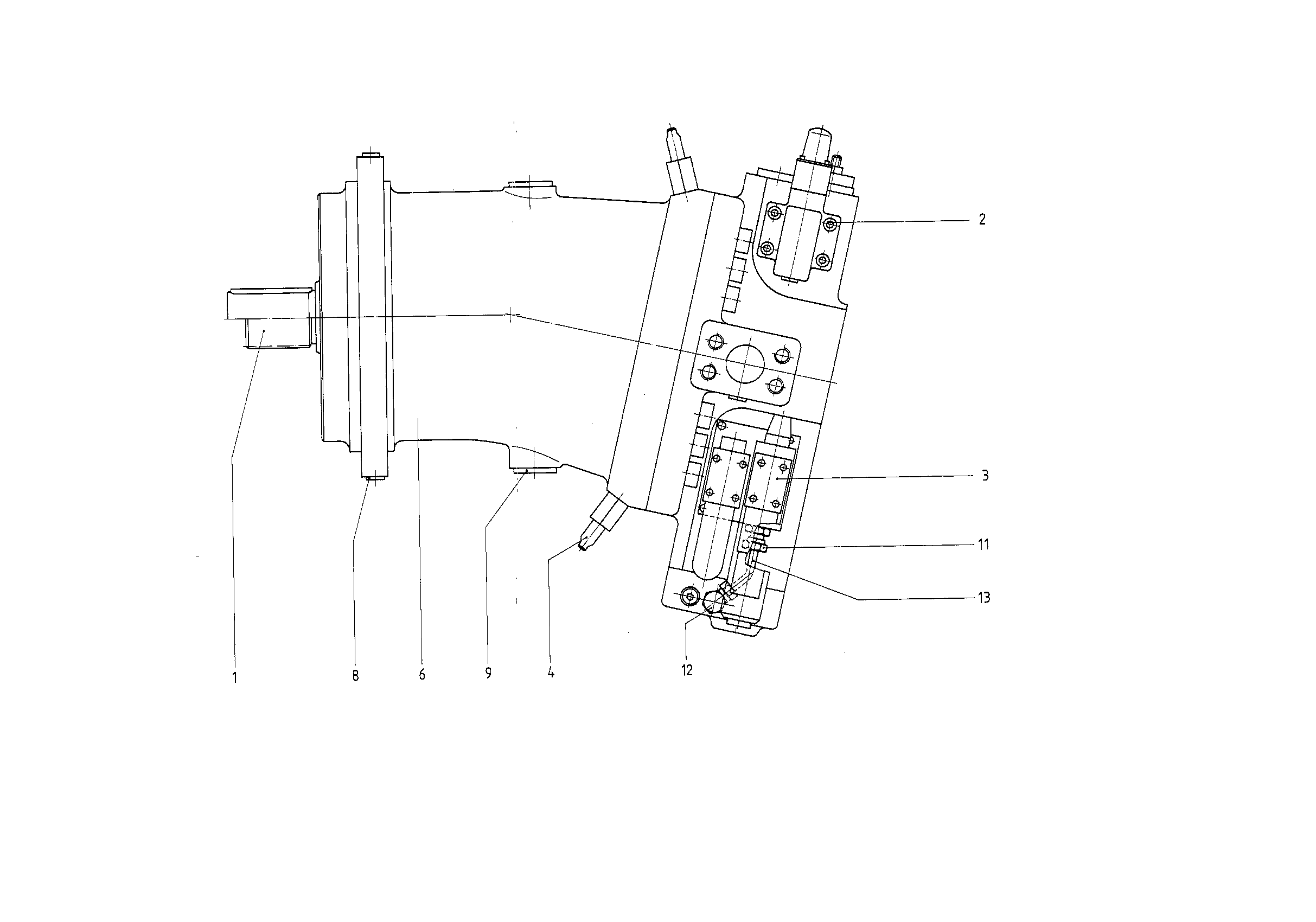

Axial piston pump Bosch Rexroth series A7V, type code AA7V-SL500EL51RPFOD, material number R910802726.
- Number
- R910802726
- Type code
- AA7V-SL500EL51RPFOD
- Group
- A7VSL 500
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910715131 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910802728 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R910844071 | VALVE BLOCK Assembly parts list →L | 1 | |
| 4 | R910588571 | ADJUSTING PART Assembly parts list →L | 2 | |
| 6 | R910811386 | HOUSING | 1 | |
| 8 | R909153815 | SCREW PLUGD | 2 | |
| 9 | R909153861 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910903310 | THREADED FASTENER | 1 | |
| 13 | R910136387 | PIPEMYANMAR | 100 |
