Unit · ADJUSTING PIECE
VERST. A7V 1000 HDR910805505

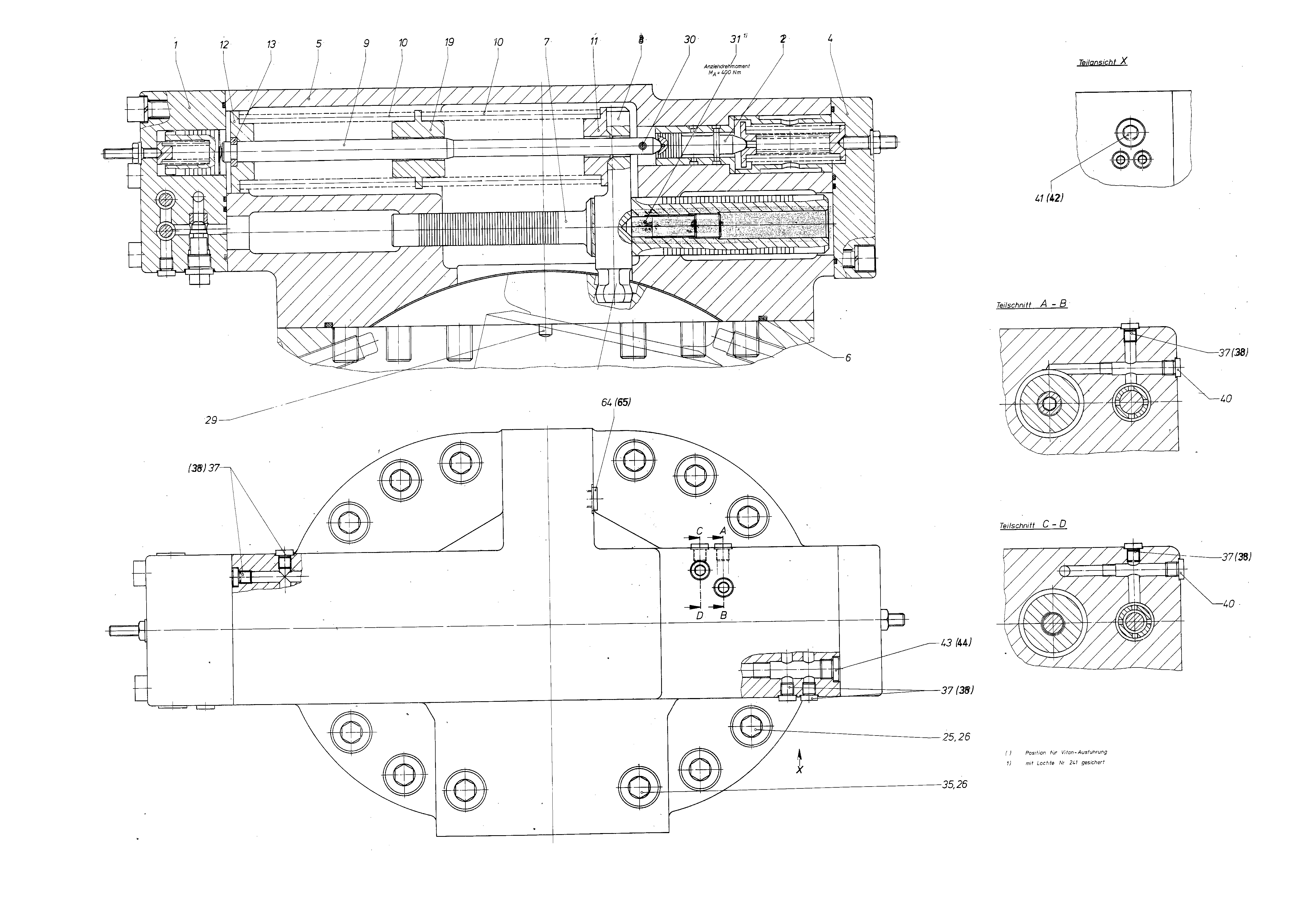

Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V1000HD, material number R910805505.
- Number
- R910805505
- Type code
- VERST. A7V 1000 HD
- Group
- A7V 1000
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910805548 | COVER Assembly parts list →L | 1 | ||
| R910848832 | CONTROL PART Assembly parts list →L | 1 | ||
| R910805556 | COVER Assembly parts list →L | 1 | ||
| 41 | R910596949 | SPRING GUIDE Assembly parts list →L | 1 | |
| 50 | R910805335 | COVER PLATE | 1 | |
| 50 | R910841803 | POSITIONING PISTON | 1 | |
| 50 | R902414363 | POSITIONING STUD | 1 | |
| 50 | R910590304 | GUIDE ROD | 1 | |
| 51 | R910596981 | COMPRESSION SPRING | 2 | |
| 51 | R910590282 | SPRING DISK | 1 | |
| 51 | R910590274 | SPRING DISK | 1 | |
| 51 | R910590207 | RING | 1 | |
| 53 | R902533060 | SETSCREW | 1 | |
| 60 | R910544752 | O-RINGD | 1 | |
| 62 | R910414751 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100846 | SPRING LOCK WASHER | 12 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910672009 | SLOTTED SPRING PIN | 1 | |
| 63 | R910579947 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R909151692 | SCREW PLUGD | 6 | |
| 64 | R909151979 | SCREW PLUGD | 2 | |
| 64 | R909151694 | SCREW PLUGD | 1 | |
| 64 | R909153815 | SCREW PLUGD | 1 | |
| 66 | R909153816 | SCREW PLUGD | 1 |
