Unit · ADJUSTING PIECE
VERST. A7V 500 DR HUBBEGR.R910818658
Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V500DRHUBBEGR., material number R910818658.
- Number
- R910818658
- Type code
- VERST. A7V 500 DR HUBBEGR.
- Group
- A7V 500
- Edition
- 06/2020

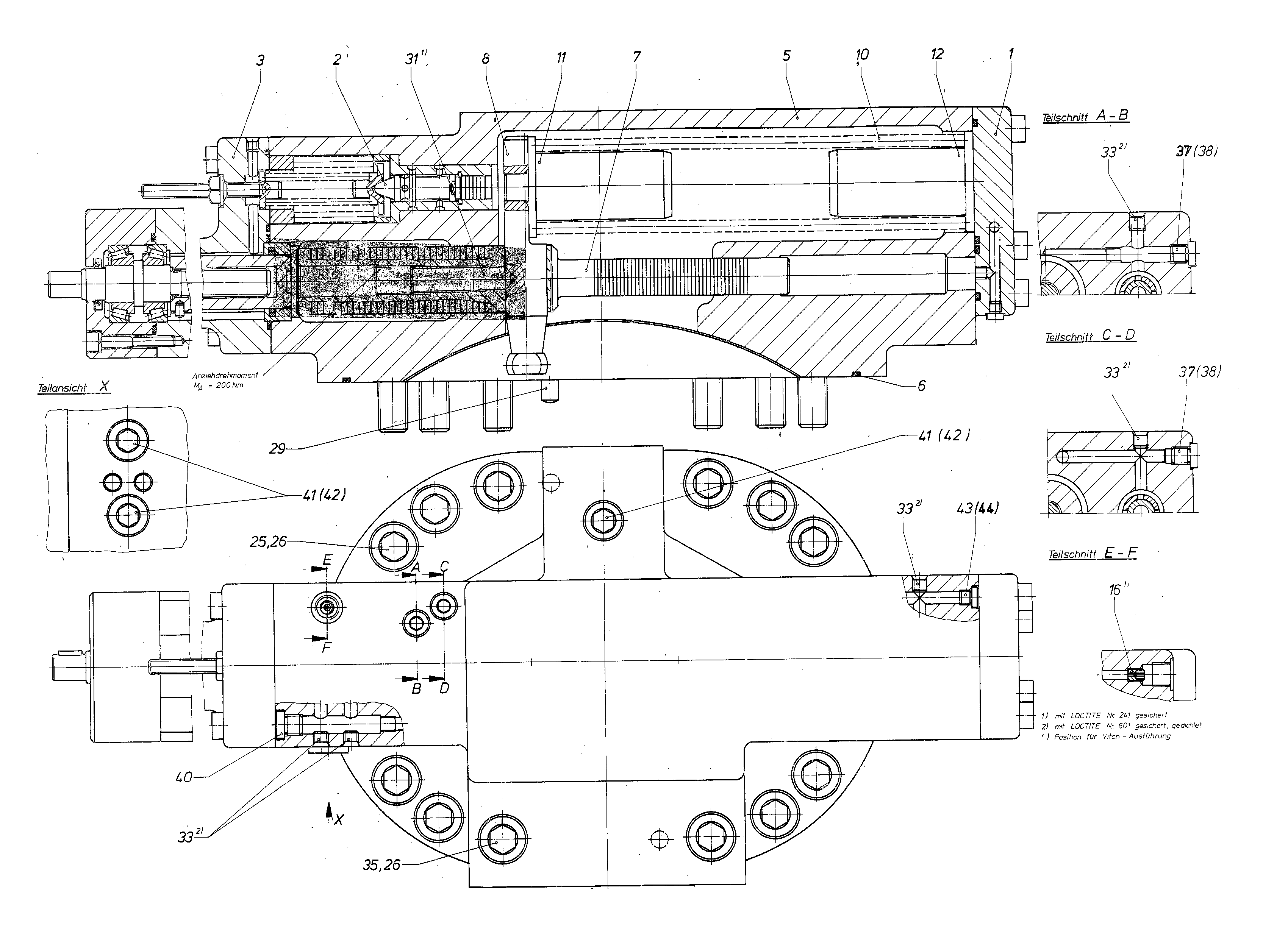

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910597171 | COVER Assembly parts list →L | 1 | ||
| R910818488 | CONTROL PART Assembly parts list →L | 1 | ||
| R910585319 | STROKE LIMITER Assembly parts list →L | 1 | ||
| 50 | R910808784 | COVER PLATE | 1 | |
| 50 | R910841994 | POSITIONING PISTON | 1 | |
| 50 | R902413796 | POSITIONING STUD | 1 | |
| 51 | R910582085 | COMPRESSION SPRING | 1 | |
| 51 | R910801356 | SPRING BUSH | 1 | |
| 51 | R910801348 | SPRING BUSH | 1 | |
| 51 | R910594253 | THROTTLE SCREW | 1 | |
| 53 | R902533059 | SETSCREW | 1 | |
| 60 | R910801399 | O-RINGD | 1 | |
| 62 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| 62 | R910100838 | SPRING LOCK WASHER | 12 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 63 | R910801402 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R909151692 | SCREW PLUGD | 2 | |
| 64 | R909151979 | SCREW PLUGD | 1 | |
| 64 | R909151694 | SCREW PLUGD | 3 | |
| 64 | R909153364 | SCREW PLUGD | 1 |
