Unit · AXIAL-PISTON PUMP
AA7V250EL51RPFOFR910848999
Axial piston pump Bosch Rexroth series A7V, type code AA7V250EL51RPFOF, material number R910848999.
- Number
- R910848999
- Type code
- AA7V250EL51RPFOF
- Group
- A7V 250
- Edition
- 06/2020

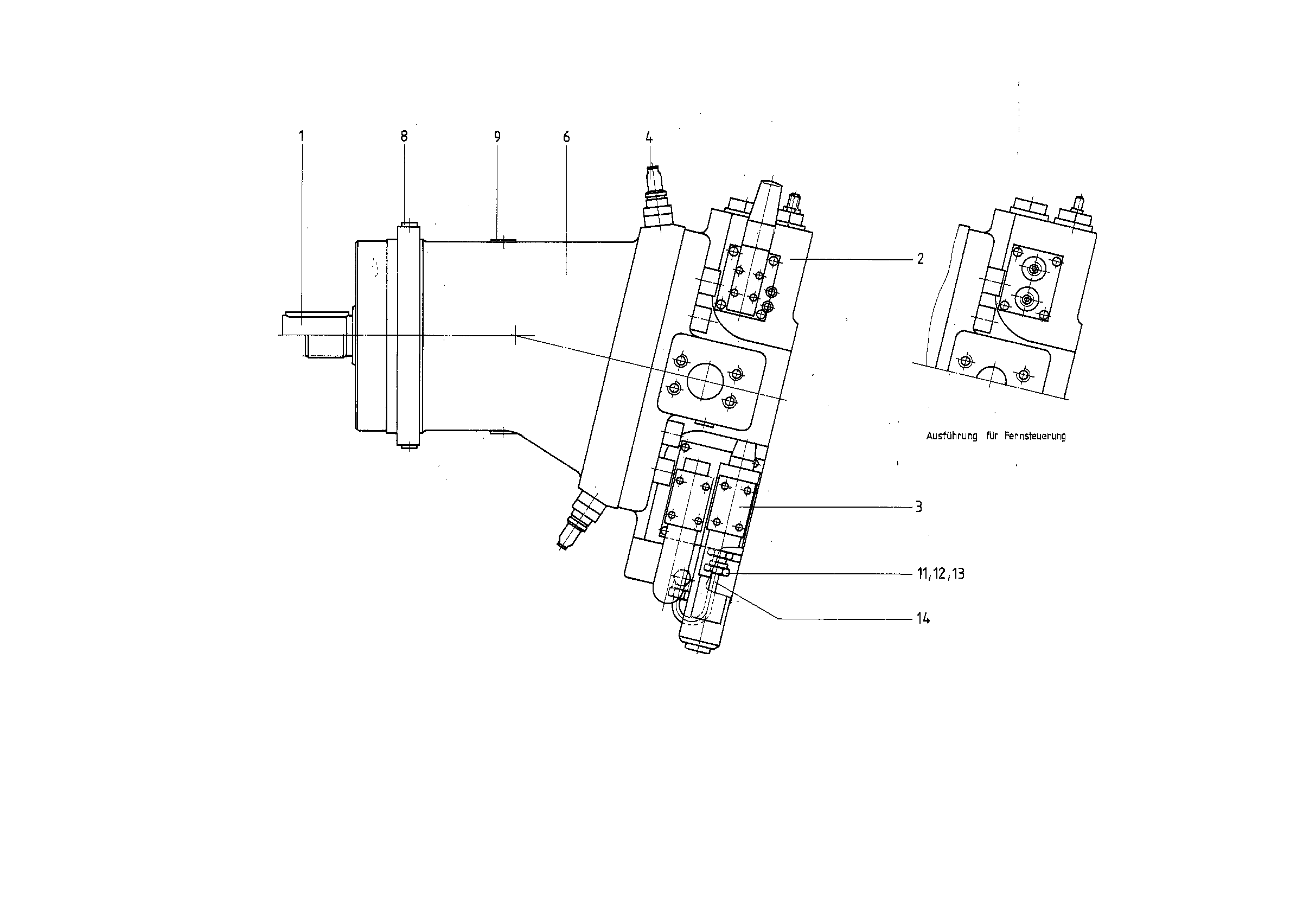

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713201 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910848972 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 3 | R910844071 | VALVE BLOCK Assembly parts list →L | 1 | |
| 4 | R910590789 | ADJUSTING PART Assembly parts list →L | 2 | |
| R910801844 | HOUSING | 1 | ||
| 8 | R909151979 | SCREW PLUGD | 2 | |
| 9 | R909151694 | SCREW PLUGD | 2 | |
| 11 | R910913262 | THREADED FASTENER | 1 | |
| 12 | R910797596 | THREADED FASTENER | 1 | |
| 13 | R910778788 | THREADED FASTENER | 1 | |
| R910997196 | PIPEMYANMAR | 200 |
