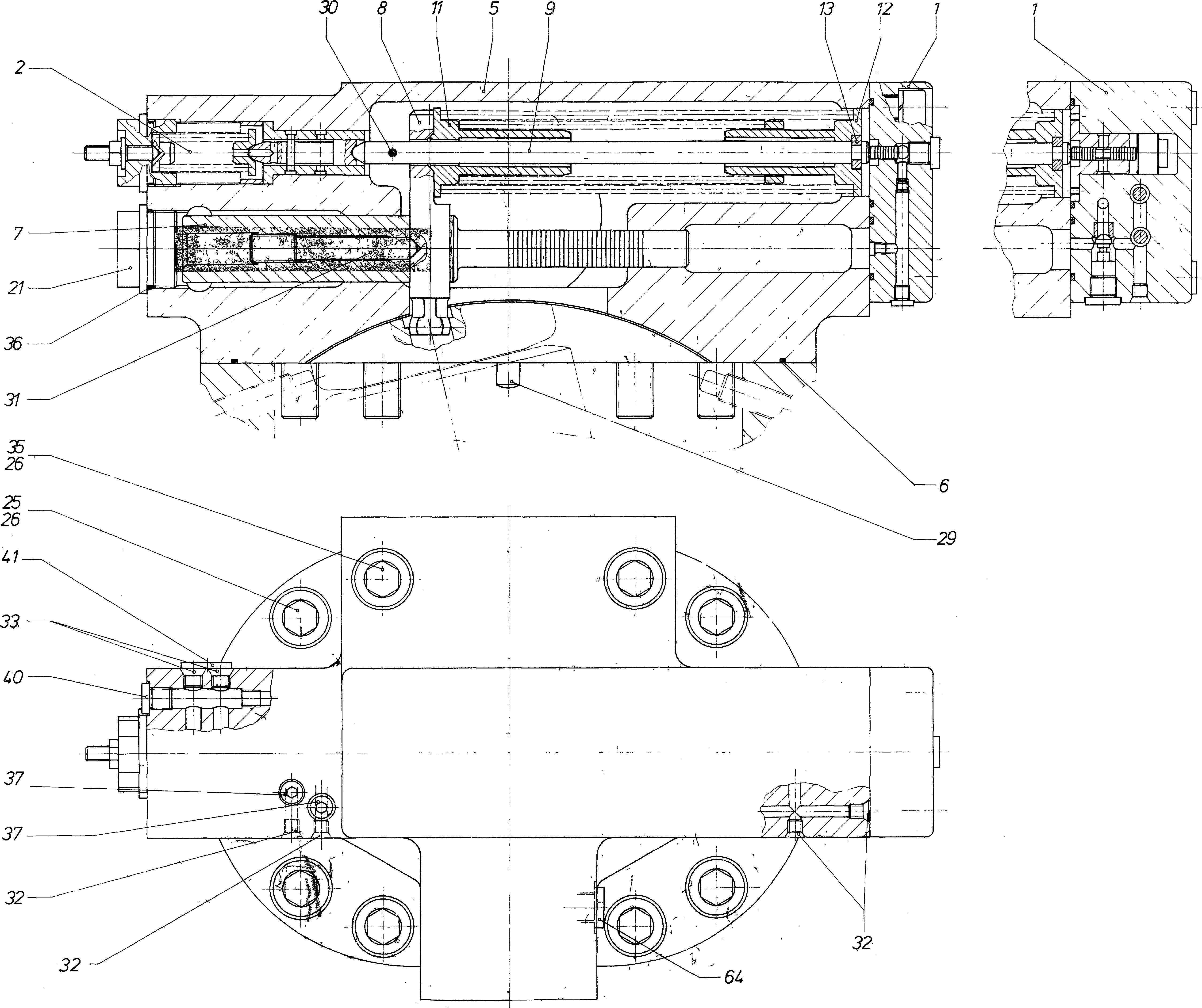

Unit · ADJUSTING PIECE
VERST.A7V 250 LV HYDR.HUBBEGR -SOR910849766
Adjusting piece Bosch Rexroth series A7V, type code VERST.A7V250LVHYDR.HUBBEGR-SO, material number R910849766.
- Number
- R910849766
- Type code
- VERST.A7V 250 LV HYDR.HUBBEGR -SO
- Group
- A7V 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910849782 | COVER Assembly parts list →L | 1 | ||
| R910590762 | CONTROL PART Assembly parts list →L | 1 | ||
| R910803723 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| R910803634 | SPRING BUSH | 1 | ||
| R910803642 | SPRING BUSH | 1 | ||
| R910583855 | RING | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R910516481 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
