Unit · AXIAL-PISTON PUMP
AA7V500LV51RPFHO-SOR910853011
Axial piston pump Bosch Rexroth series A7V, type code AA7V500LV51RPFHO-SO, material number R910853011.
- Number
- R910853011
- Type code
- AA7V500LV51RPFHO-SO
- Group
- A7V 500
- Edition
- 06/2020

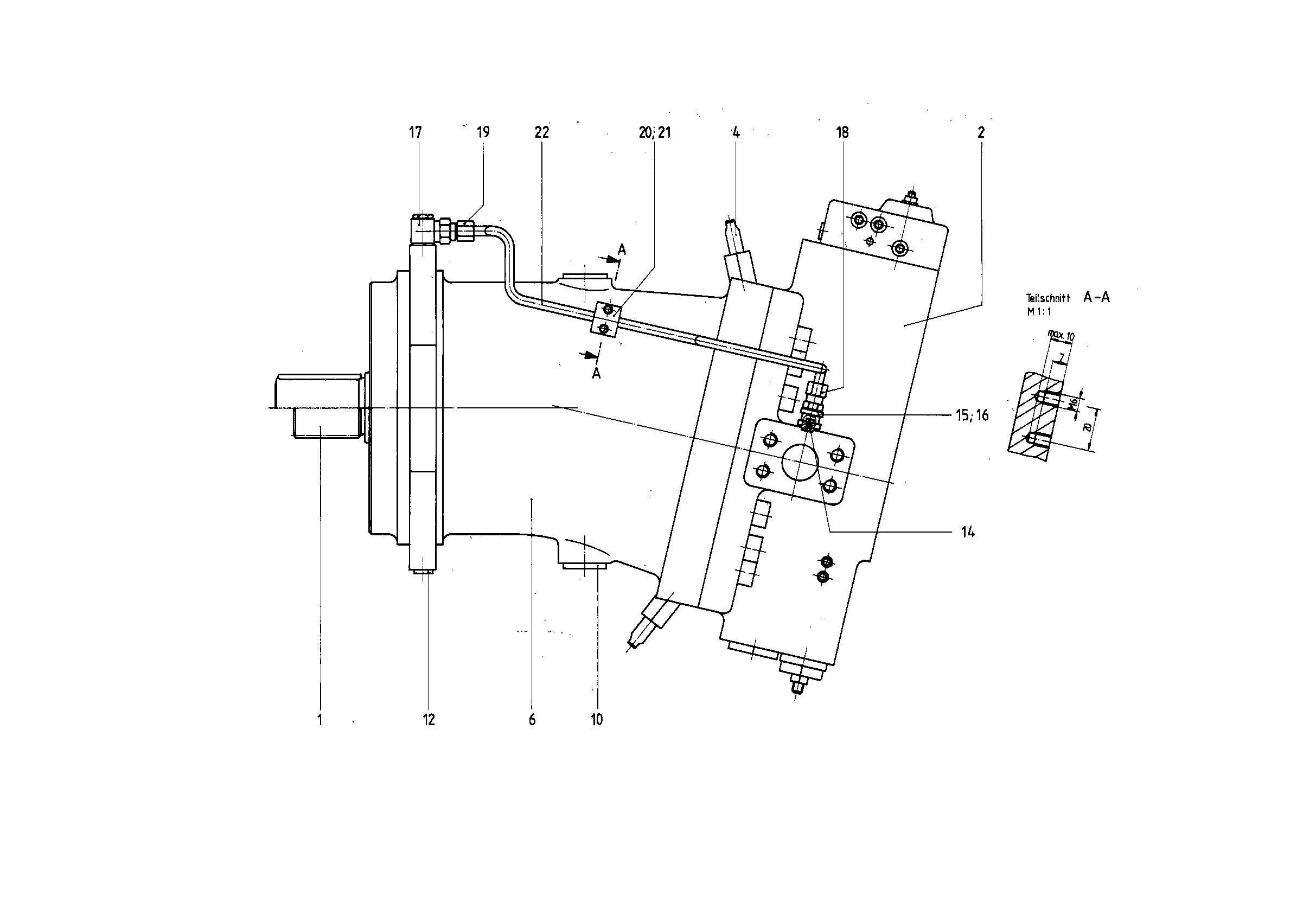

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910713392 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910849111 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 4 | R910588571 | ADJUSTING PART Assembly parts list →L | 2 | |
| 6 | R910811386 | HOUSING | 1 | |
| R909153861 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R910736538 | NOZZLE | 1 | ||
| 15 | R910789232 | O-RINGD | 1 | |
| 16 | R910949116 | THREADED FASTENER | 1 | |
| R910755761 | THREADED FASTENER | 1 | ||
| R910913262 | THREADED FASTENER | 1 | ||
| R910913642 | THREADED FASTENER | 1 | ||
| 20 | R910529451 | CLAMP | 1 | |
| 21 | R910109312 | SOCKET HEAD CAP SCREW | 2 | |
