Unit · CONTROL
V AA6V M 250 HA2T /61-P520A -SO 5R910909070
Control Bosch Rexroth series A6VM, type code VAA6VM250HA2T/61-P520A-SO5, material number R910909070. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: parallel keyed shaft DIN 6885 (P). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S). Special version no. 5.
- Number
- R910909070
- Type code
- V AA6V M 250 HA2T /61-P520A -SO 5
- Group
- A6VM 250
- Edition
- 06/2020

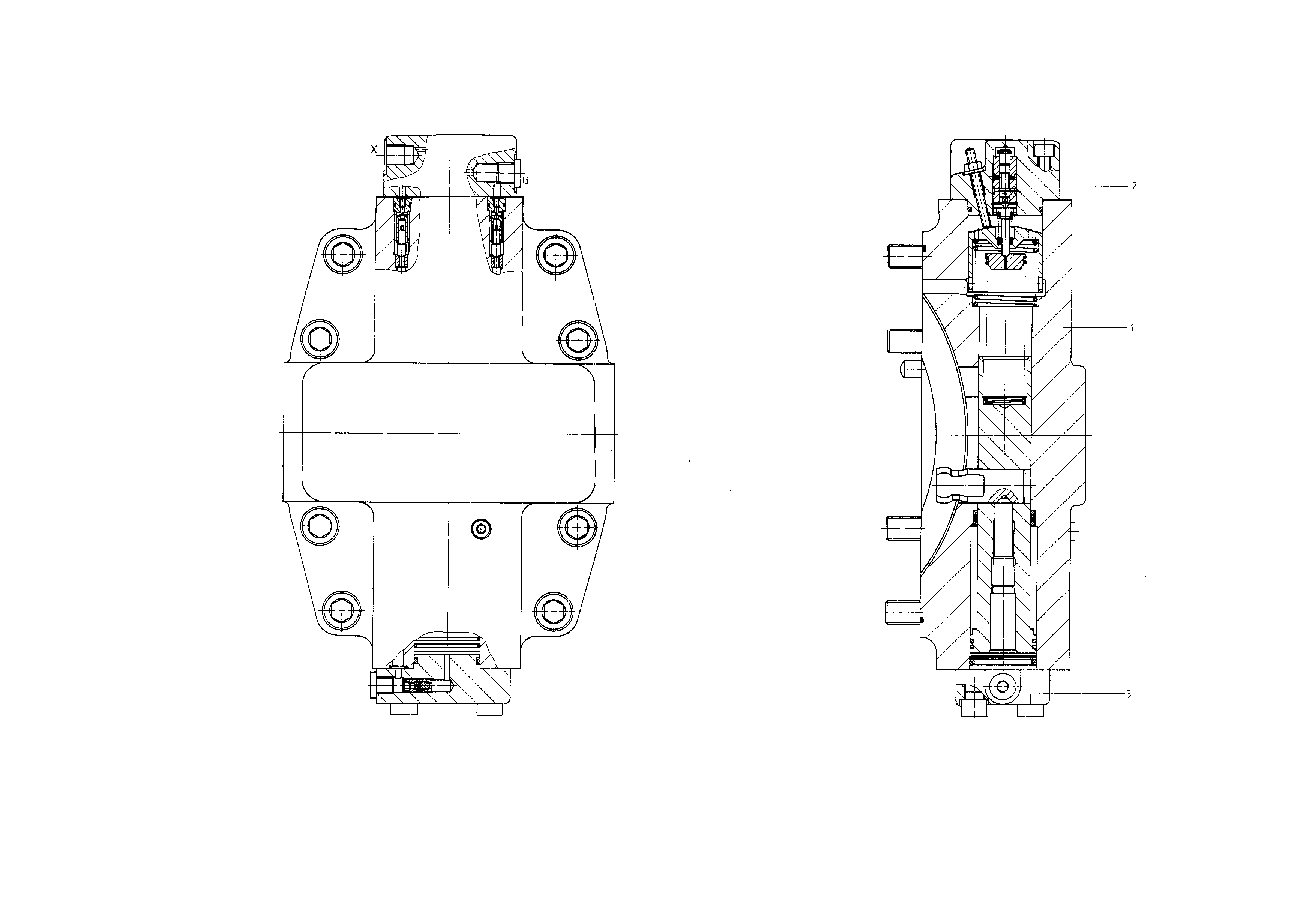

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910908977 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910909015 | CONTROL PART Assembly parts list →L | 1 | |
| R910802531 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
