Unit · CONTROL
V A6V M 250 HD1D /61-P020 -SO 7R910922933
Control Bosch Rexroth series A6VM, type code VA6VM250HD1D/61-P020-SO7, material number R910922933. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Standard/special version: special version (-S). Special version no. 7.
- Number
- R910922933
- Type code
- V A6V M 250 HD1D /61-P020 -SO 7
- Group
- A6VM 250
- Edition
- 06/2020

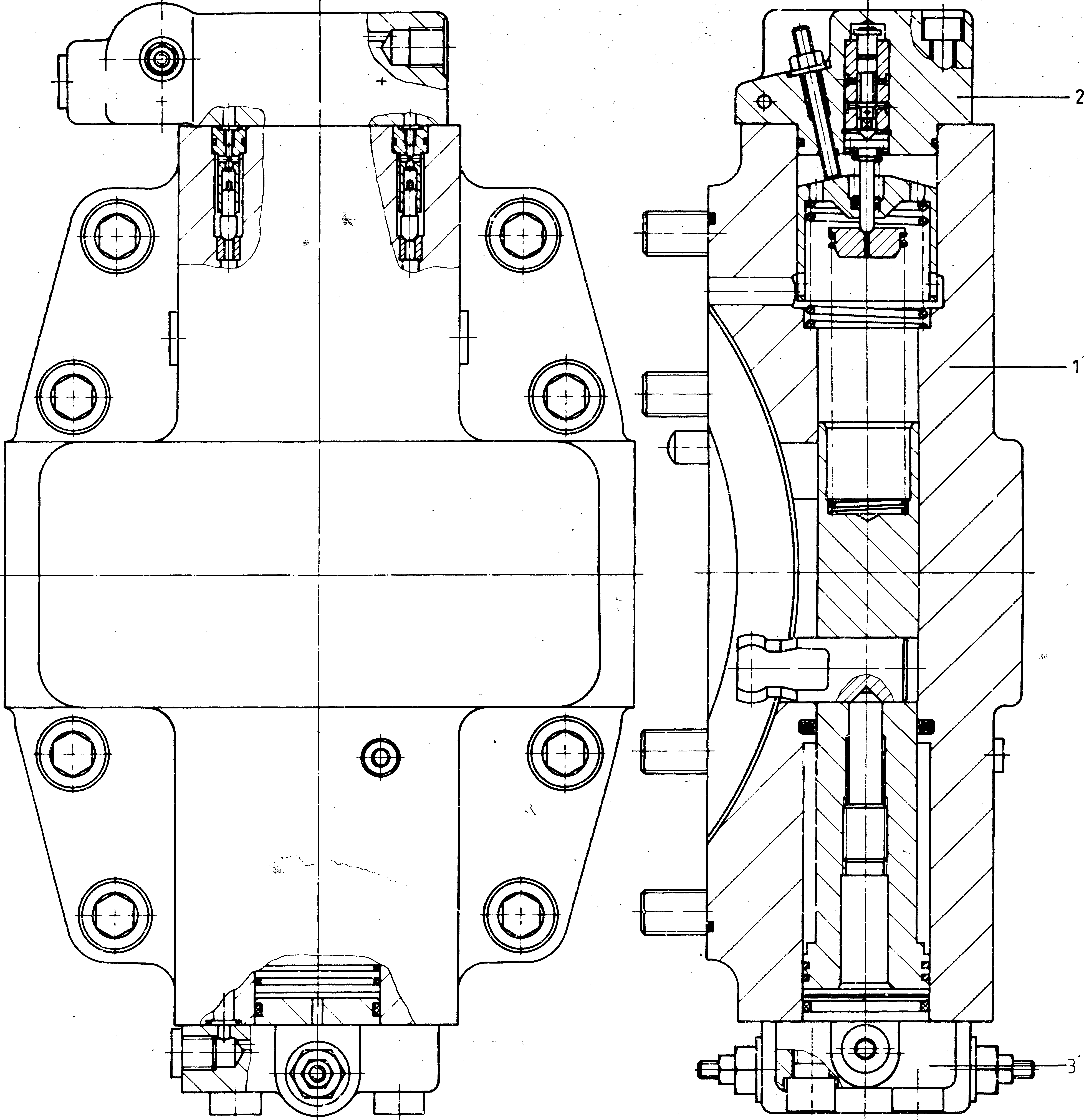

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910909227 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910801382 | CONTROL PART Assembly parts list →L | 1 | ||
| R910801381 | SWIVEL TIME LIMITING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Standard/special version | Special version | -S |
