Unit · AXIAL-PISTON PUMP
A A4VSO 500 EM1056/10X-PPH13N00R910930141
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO500EM1056/10X-PPH13N00, material number R910930141. Nominal size: NG 500. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 8-hole (H). Through-drive: without through drive (N00).
- Number
- R910930141
- Type code
- A A4VSO 500 EM1056/10X-PPH13N00
- Group
- A4VSO 500
- Edition
- 06/2020

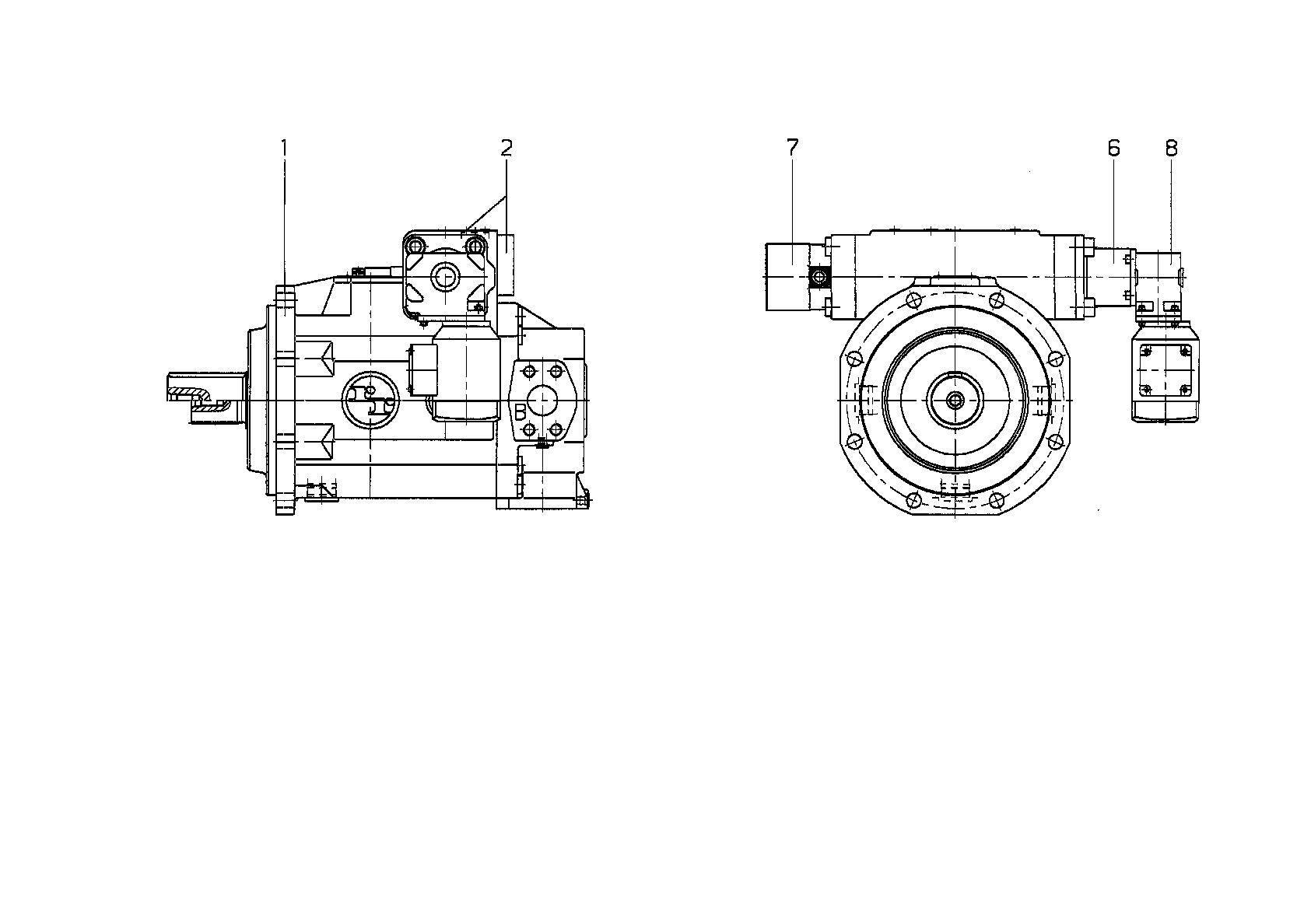

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910914801 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R910918333 | CONTROL Assembly parts list →L | 1 | |
| 6 | R910918338 | COUPLING | 1 | |
| 7 | R910918336 | LIMIT SWITCH | 1 | |
| 8 | R910930142 | GEAR MOTOR | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 500 | 500 |
| Electric motor control 92072 | EM | |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 8-hole | H |
| Through-drive | Without through drive | N00 |
