Unit · CONTROL
V A7V O 250 HDG /60RR910931086
Control Bosch Rexroth series A7VO, type code VA7VO250HDG/60R, material number R910931086. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R).
- Number
- R910931086
- Type code
- V A7V O 250 HDG /60R
- Group
- A7VO 250
- Edition
- 06/2020

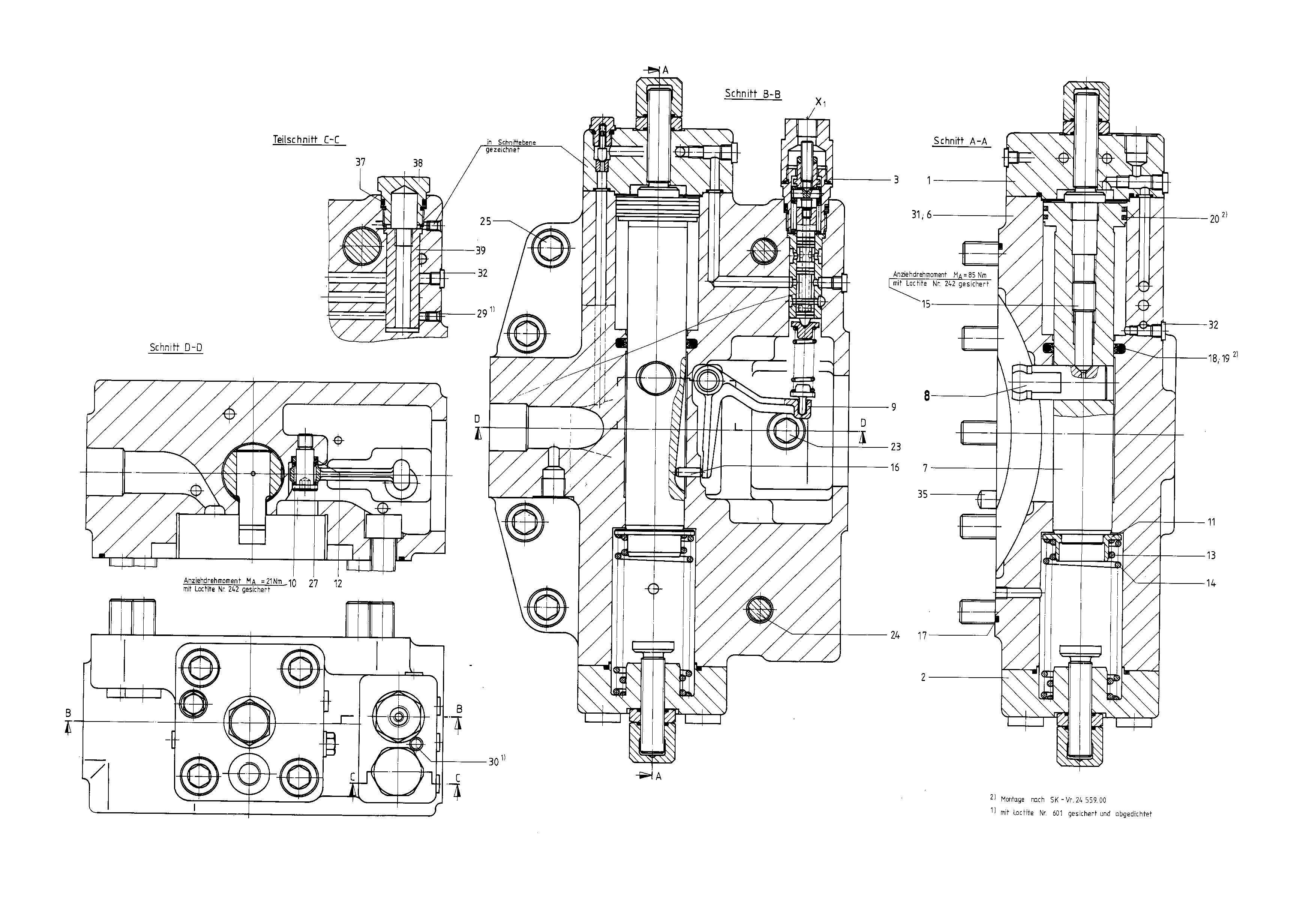

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910931088 | COVER Assembly parts list →L | 1 | ||
| R910912088 | COVER Assembly parts list →L | 1 | ||
| R910921342 | CONTROL PART Assembly parts list →L | 1 | ||
| R902533145 | VALVE INSERT | 1 | ||
| R910909474 | COVER PLATE | 1 | ||
| R910909481 | POSITIONING PISTON | 1 | ||
| R902413803 | POSITIONING STUD | 1 | ||
| R910909291 | LEVER | 1 | ||
| R910921037 | STUD BOLT | 1 | ||
| R910909485 | SPRING DISK | 1 | ||
| R910912065 | WASHER | 1 | ||
| R910909214 | COMPRESSION SPRING | 1 | ||
| R910909215 | COMPRESSION SPRING | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910905253 | O-RINGD | 1 | ||
| R910907799 | ROD SEALD | 1 | ||
| R910514942 | O-RINGD | 1 | ||
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 1 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910909603 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909154024 | SCREW PLUGD | 12 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910513539 | O-RINGD | 1 | ||
| R910927860 | SCREW PLUG | 1 | ||
| R910927859 | BUSHING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Direction of rotation | Viewed on drive shaft | R |
