Unit · CONTROL
V A4VSG 500 HD -V **R910931838
Control Bosch Rexroth series A4VSO, type code VA4VSG500HD-V**, material number R910931838. Nominal size: NG 500. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R910931838
- Type code
- V A4VSG 500 HD -V **
- Group
- A4VSG 500
- Edition
- 06/2020

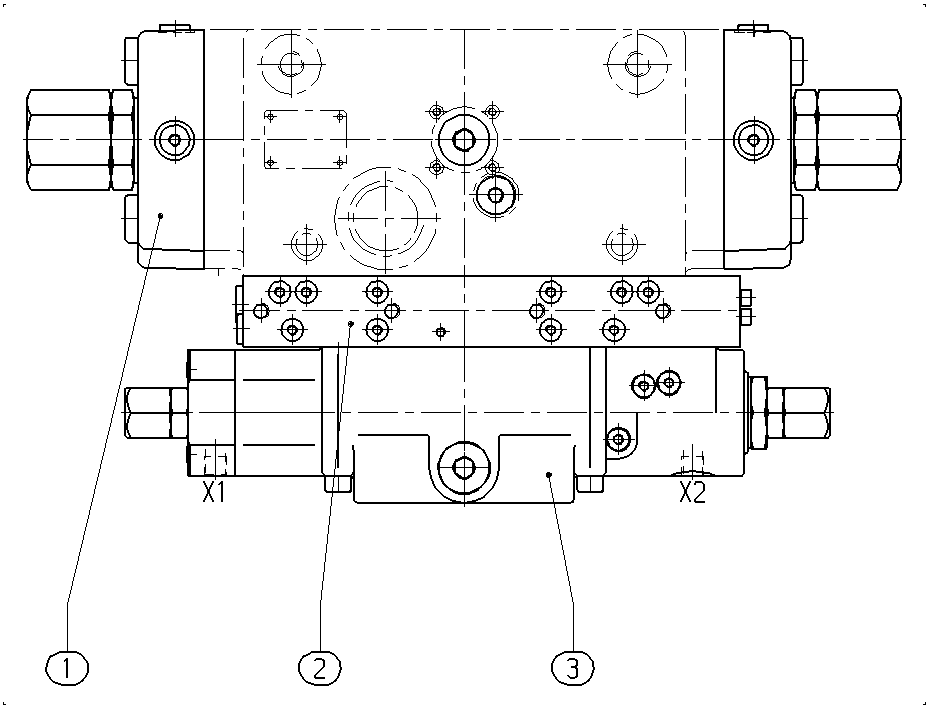

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971760 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910931840 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910931841 | CONTROL MODULE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
