Unit · AXIAL-PISTON PUMP

AAA10VO45DFR1/50R-PSC11N00-SO397R910945981

Axial piston pump Bosch Rexroth series A10VO, type code AAA10VO45DFR1/50R-PSC11N00-SO397, material number R910945981. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 397.

Number: R910945981
Type code: AAA10VO45DFR1/50R-PSC11N00-SO397
Group: A10VO 45
Edition: 06/2020

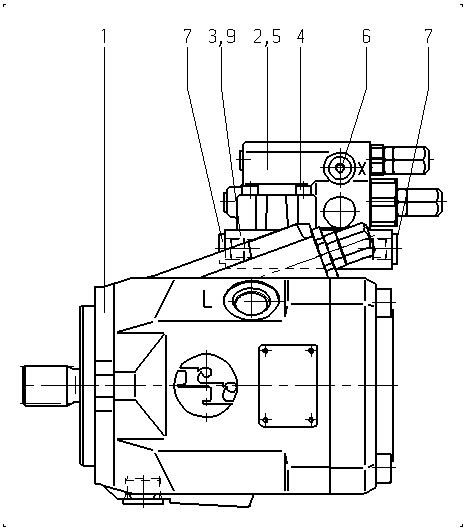

AAA10VO45DFR1/50R-PSC11N00-SO397 — Drawing

Pos.	Number	Name	Qty
	R910939960	BASE UNIT Assembly parts list →L	1
	R902474554	CONTROL VALVE Assembly parts list →L	1
	R910945032	INTERMEDIATE PLATE	1
	R910126454	SOCKET HEAD CAP SCREW	4
	R910515078	O-RING	3
	R909154478	SCREW PLUG	1
	R913011601	SCREW PLUG	2
	R910856649	NOZZLE	1
10	R902434482	SEAL	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	With flow controller X-T plugged, with flushing function	DFR1
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
