Unit · AXIAL-PISTON PUMP

APAA10VO45DFR1/50R-PSC11N00R910970629

Axial piston pump Bosch Rexroth series A10VO, type code APAA10VO45DFR1/50R-PSC11N00, material number R910970629. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00).

Number
R910970629
Type code
APAA10VO45DFR1/50R-PSC11N00
Group
A10VO 45
Edition
06/2020

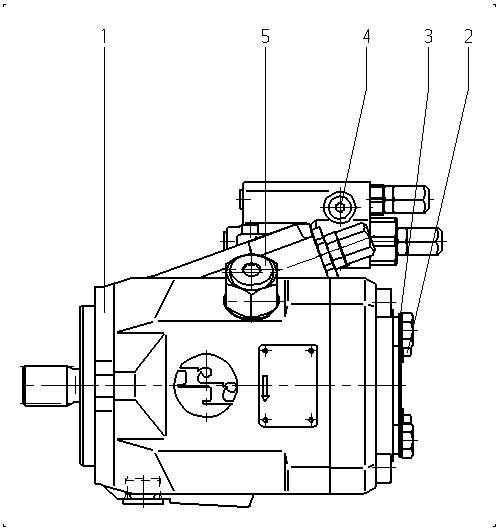

APAA10VO45DFR1/50R-PSC11N00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910965354AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400586FLANGE COVER1
R909151979SCREW PLUG1
R909151694SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
Direction of rotationViewed on drive shaft ClockwiseR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive11
Through driveWithout through driveN00
