Unit · AXIAL-PISTON PUMP
AA4VSO180HM2/22L-PPB13N00-SO61R910947037
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO180HM2/22L-PPB13N00-SO61, material number R910947037. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Control device Information on controller selection: hydraulic control, depending on quantity (HM2). Directions of rotation: viewed on drive shaft Counter-clockwise (L). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: without through drive and auxiliary pump (N00). Special version no. 61.
- Number
- R910947037
- Type code
- AA4VSO180HM2/22L-PPB13N00-SO61
- Group
- A4VSO 180
- Edition
- 09/2018

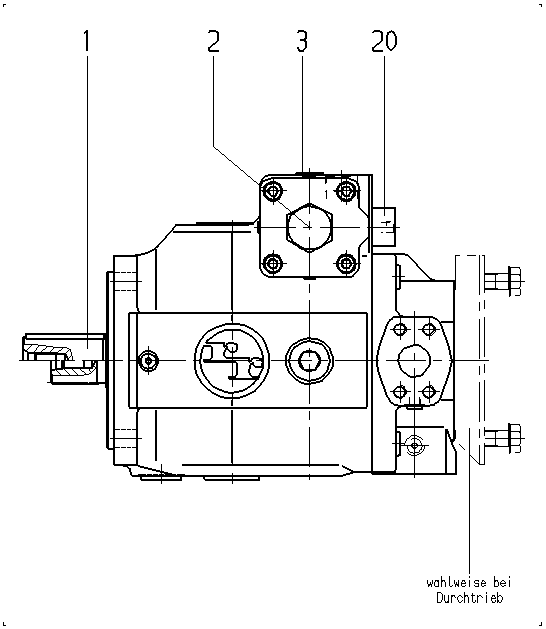

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910934218 | BASE UNIT Assembly parts list →L | 1 | ||
| — | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910479918 | CONTROL PLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 180 | 180 |
| Control device Information on controller selection | Hydraulic control, depending on quantity | HM2 |
| Directions of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | without through drive and auxiliary pump | N00 |
