Unit · CONTROL
V A7V O 1000 HD1D /63L-P 01VR910948516
Control Bosch Rexroth series A7VO, type code VA7VO1000HD1D/63L-P01V, material number R910948516. Nominal size: NG 1000.
- Number
- R910948516
- Type code
- V A7V O 1000 HD1D /63L-P 01V
- Group
- A7VO 1000
- Edition
- 07/2020

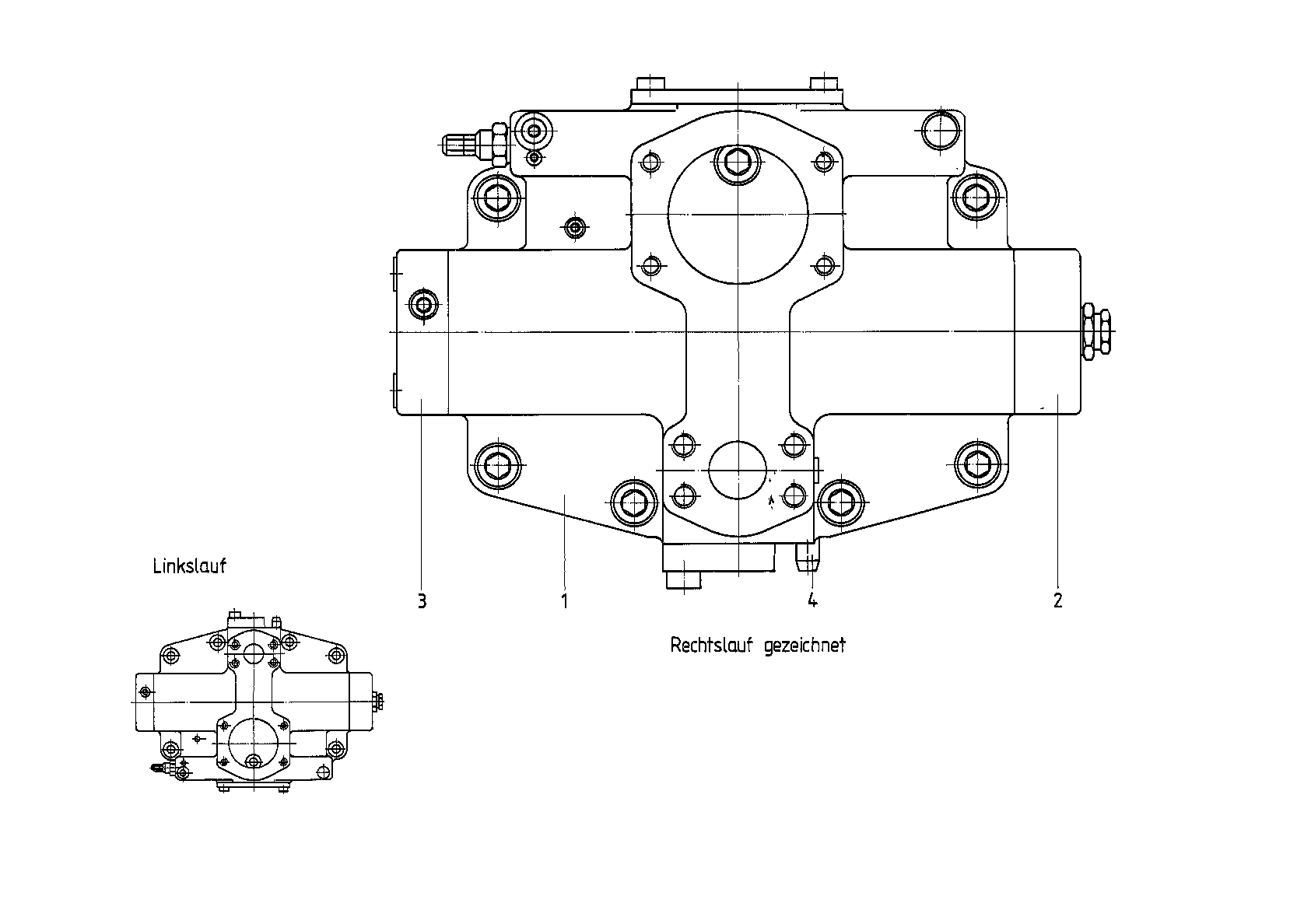

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910948522 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910948523 | CONTROL PART Assembly parts list →L | 1 | ||
| R910948524 | COVER Assembly parts list →L | 1 | ||
| R910948525 | INDICATING DEVICE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 1000 | 1000 | |
| Hydraulic control, pilot pressure dependent, with integrated pressure control (fixed setting) Δp = 10 bar | HD1D | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| Keyed parallel shaft to DIN 6885 | P | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 | |
| With optical swivel angle indicator | V |
