Unit · CONTROL
V A4VSG 500 HD1DT /20L-VR910960922
Control Bosch Rexroth series A4VSO, type code VA4VSG500HD1DT/20L-V, material number R910960922. Nominal size: NG 500. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R910960922
- Type code
- V A4VSG 500 HD1DT /20L-V
- Group
- A4VSG 500
- Edition
- 06/2020

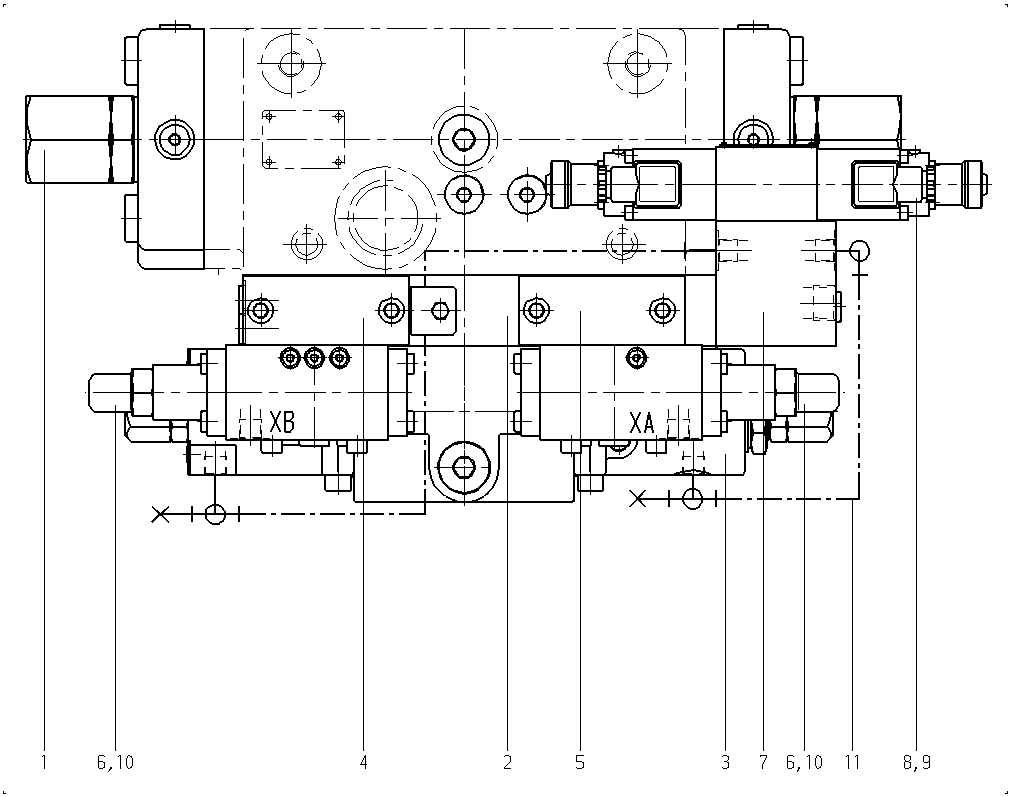

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971760 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910960924 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910931841 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910960923 | PLATE Assembly parts list →L | 1 | ||
| R910949093 | PLATE Assembly parts list →L | 1 | ||
| R910960925 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R910964881 | BLOCK Assembly parts list →L | 1 | ||
| R902405796 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R910977595 | SOCKET HEAD CAP SCREW | 4 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 8 | ||
| R910917024 | PIPING PLAN Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T |
