Unit · AXIAL-PISTON MOTOR
A AA10V M 45 HZ /50W1-PUC68B020R910961611
Axial piston motor Bosch Rexroth series A10VM, type code AAA10VM45HZ/50W1-PUC68B020, material number R910961611. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control hydraulic without switching time (HZ). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Valves: without valve (0).
- Number
- R910961611
- Type code
- A AA10V M 45 HZ /50W1-PUC68B020
- Group
- A10VM 45
- Edition
- 06/2020

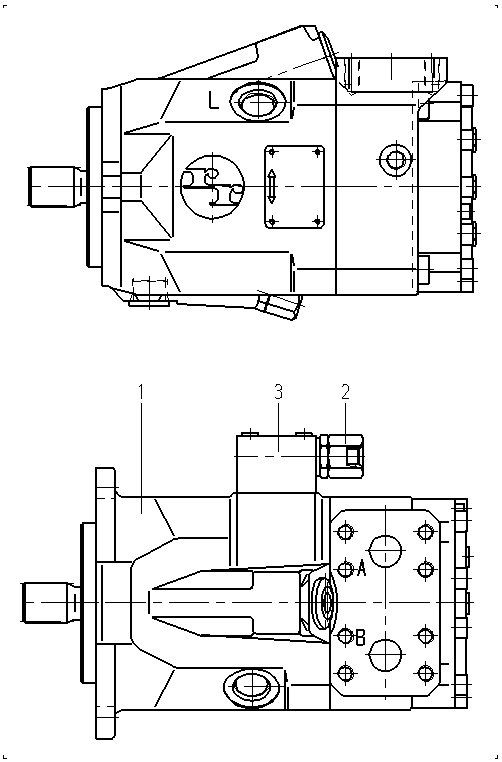

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961276 | BASE UNIT Assembly parts list →L | 1 | ||
| R902410659 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910929640 | VALVE HOUSING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic without switching time | HZ |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Valves | Without valve | 0 |
