Unit · BASE UNIT
G A4VSG 750 OV /22R-PPH10N00R910967417
Base unit Bosch Rexroth series A4VSG, type code GA4VSG750OV/22R-PPH10N00, material number R910967417. Nominal size: NG 750. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: without through drive (N00).
- Number
- R910967417
- Type code
- G A4VSG 750 OV /22R-PPH10N00
- Group
- A4VSG 750
- Edition
- 06/2020

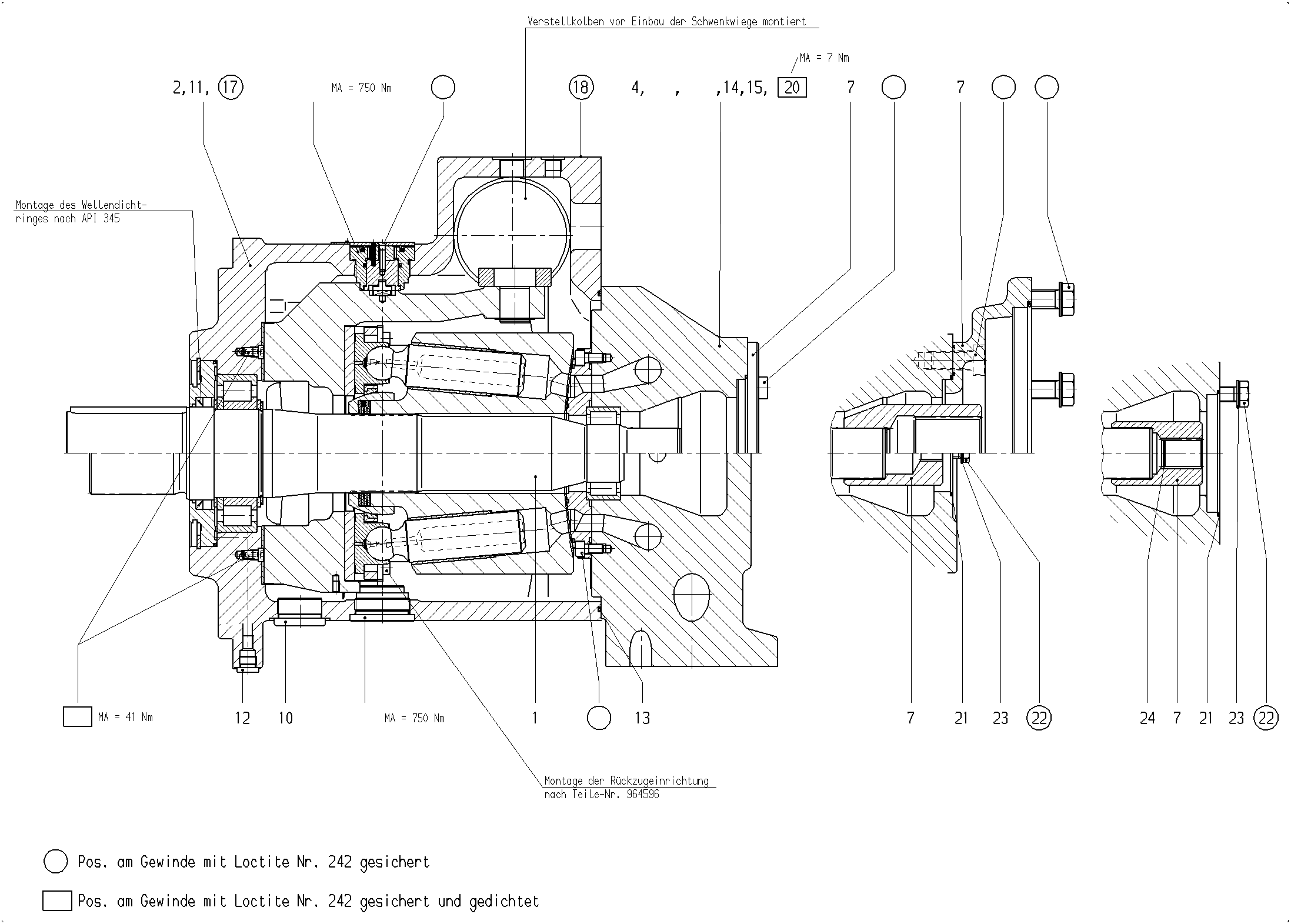

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970955 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910936524 | PUMP HOUSING | 1 | ||
| R910967419 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| 5 | R910919860 | INDICATING DEVICE Assembly parts list →L | 1 | |
| 6 | R902544277 | STUD BOLT Assembly parts list →L | 1 | |
| 9 | R910975644 | SOCKET HEAD CAP SCREW | 8 | |
| R910941726 | SCREW PLUG | 3 | ||
| R909153364 | SCREW PLUG | 2 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R910937465 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R910923831 | R-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910594253 | THROTTLE SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 750 | 750 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | Without through drive | N00 |
