Unit · AXIAL-PISTON PUMP

AL A10V O 45 DFSR/31R-VSC62K01 -SO522R910972935

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFSR/31R-VSC62K01-SO522, material number R910972935. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 522.

Number
R910972935
Type code
AL A10V O 45 DFSR/31R-VSC62K01 -SO522
Group
A10VO 45
Edition
06/2020

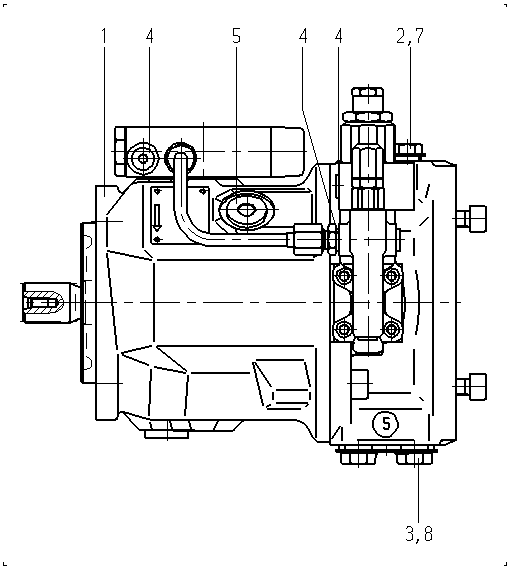

AL A10V O 45 DFSR/31R-VSC62K01 -SO522 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910968606AXIAL-PISTON PUMP Assembly parts list →L1
R902400579FLANGE COVER1
R902400587FLANGE COVER1
R910764647SCREW PLUG3
R910967343SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive82-2 (A) 5/8 in 9T 16/32DPK01
