Unit · AXIAL-PISTON PUMP

AL A10V O 45 DFSR/31R-VSC62K01 -SO520R992001437

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45DFSR/31R-VSC62K01-SO520, material number R992001437. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 520.

Number
R992001437
Type code
AL A10V O 45 DFSR/31R-VSC62K01 -SO520
Group
A10VO 45
Edition
06/2020

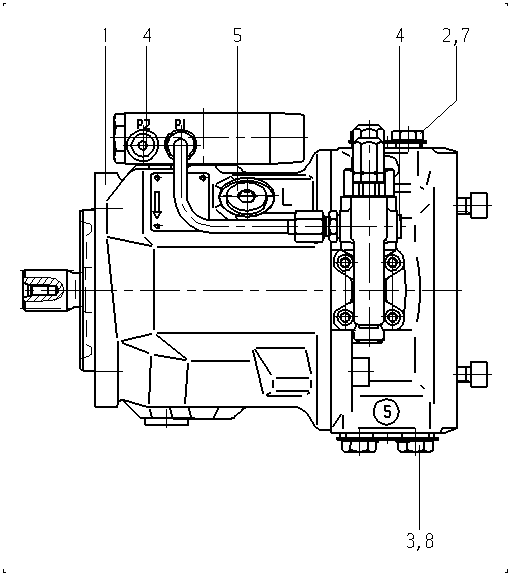

AL A10V O 45 DFSR/31R-VSC62K01 -SO520 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910968602AXIAL-PISTON PUMP Assembly parts list →L1
R902400579FLANGE COVER1
R902400587FLANGE COVER1
R902602014SEAL SCREW2
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive82-2 (A) 5/8 in 9T 16/32DPK01

Other versions 10
