Unit · REGULATOR
R A4VSO 250/355 LR2G /30R910977281
Control Bosch Rexroth series A4VSO, type code RA4VSO250/355LR2G/30, material number R910977281. Nominal size: NG 250. Axial piston unit: swashplate design, variable (A4VSO). Control device: pilot pressure characteristics 5.5...19 bar (3).
- Number
- R910977281
- Type code
- R A4VSO 250/355 LR2G /30
- Group
- A4VSO 250
- Edition
- 07/2020

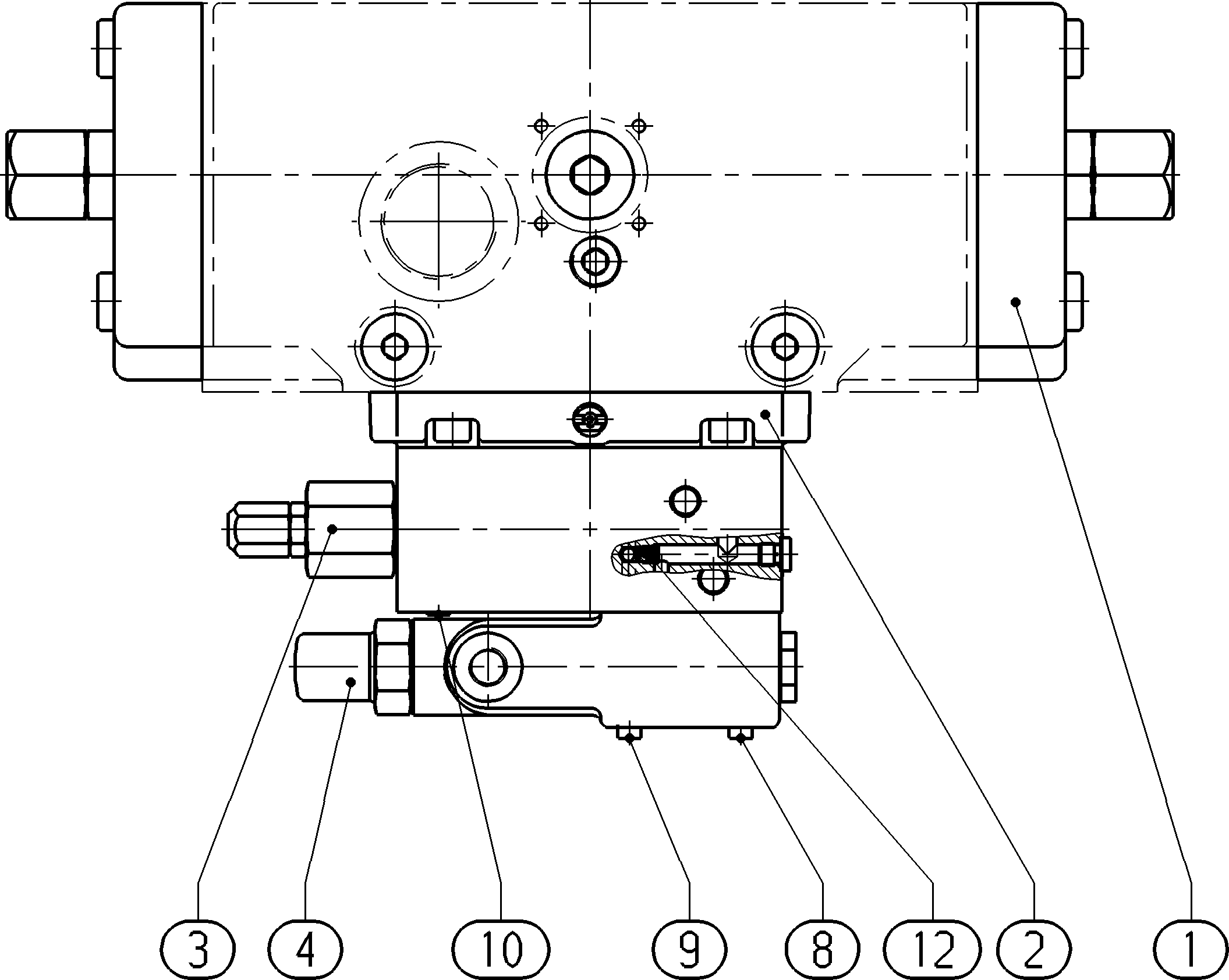

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910976994 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910977194 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910983108 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983008 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983247 | SOCKET HEAD CAP SCREW | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 2 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 2 | ||
| R909156493 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A4VSO |
| Size (NG) | 250 | 250 |
| Control device | Pilot pressure characteristics 5.5...19 bar | 3 |
| 55 | 55 | |
| Series | Series 3, index 0 | 30 |
