Unit · AXIAL-PISTON MOTOR
AAA10VM45DFR1/50W1-PSC60N000-SO677R910979427
Axial piston motor Bosch Rexroth series A10VM, type code AAA10VM45DFR1/50W1-PSC60N000-SO677, material number R910979427. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side (60N00). Valves: without valve (0). Special version no. 677.
- Number
- R910979427
- Type code
- AAA10VM45DFR1/50W1-PSC60N000-SO677
- Group
- A10VM 45
- Edition
- 06/2020

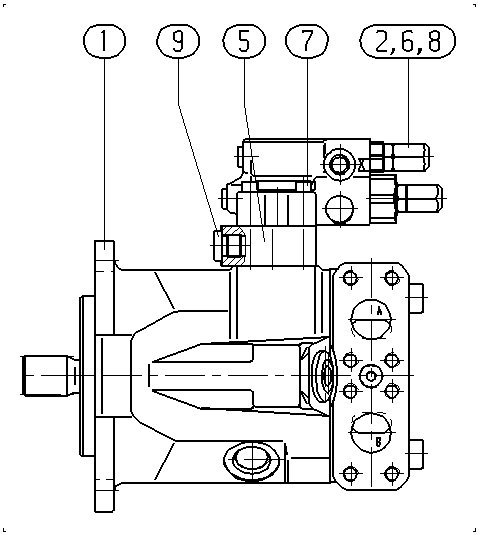

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910979369 | BASE UNIT Assembly parts list →L | 1 | ||
| R902472492 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910979481 | INTERMEDIATE PLATE | 1 | ||
| R910515078 | O-RING | 3 | ||
| R910126454 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| 10 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side | 60N00 |
| Valves | Without valve | 0 |
