Unit · AXIAL-PISTON MOTOR
ALA10VM22DFR1/52W1-PSC68N000-SO483R910983829
Axial piston motor Bosch Rexroth series A10VM, type code ALA10VM22DFR1/52W1-PSC68N000-SO483, material number R910983829. Nominal size: NG 22. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: without valve (0). Special version no. 483.
- Number
- R910983829
- Type code
- ALA10VM22DFR1/52W1-PSC68N000-SO483
- Group
- A10VM 22
- Edition
- 06/2020

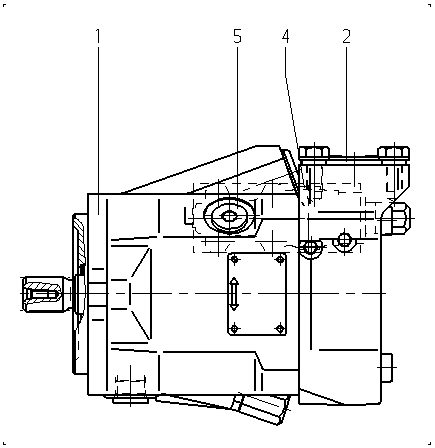

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910983832 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902400576 | FLANGE COVER | 2 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R909153338 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 22 | 22 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Without valve | 0 |
