Unit · AXIAL-PISTON MOTOR
AA10VM22DFR1/52W1-PSC68N000-SO483R910983832
Axial piston motor Bosch Rexroth series A10VM, type code AA10VM22DFR1/52W1-PSC68N000-SO483, material number R910983832. Nominal size: NG 22. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Valves: without valve (0). Special version no. 483.
- Number
- R910983832
- Type code
- AA10VM22DFR1/52W1-PSC68N000-SO483
- Group
- A10VM 22
- Edition
- 06/2020

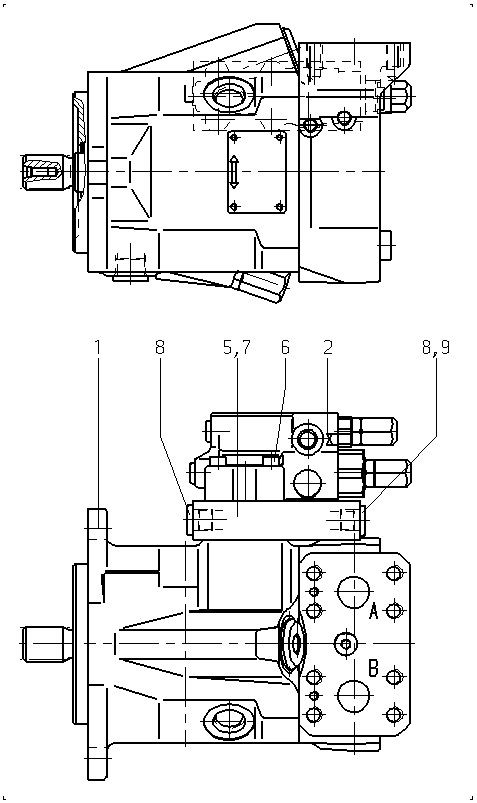

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910983859 | BASE UNIT Assembly parts list →L | 1 | ||
| R902449481 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910945032 | INTERMEDIATE PLATE | 1 | ||
| R910126454 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RING | 3 | ||
| R913011601 | SCREW PLUG | 2 | ||
| R910856649 | NOZZLE | 1 | ||
| 10 | R909154478 | SCREW PLUG | 1 | |
| 15 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 22 | 22 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Valves | Without valve | 0 |
