Unit · AXIAL-PISTON MOTOR
A A10V E 45 HZ /52WXX-PRF60N000 -SO735R910987570
Axial piston motor Bosch Rexroth series A10VM, type code AA10VE45HZ/52WXX-PRF60N000-SO735, material number R910987570. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Control devices: two-point control hydraulic without switching time (HZ). Direction of rotation: viewed on drive shaft bi-directional (W). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Working port: flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side (60N00). Valves: without valve (0). Special version no. 735.
- Number
- R910987570
- Type code
- A A10V E 45 HZ /52WXX-PRF60N000 -SO735
- Group
- A10VE 45
- Edition
- 06/2020

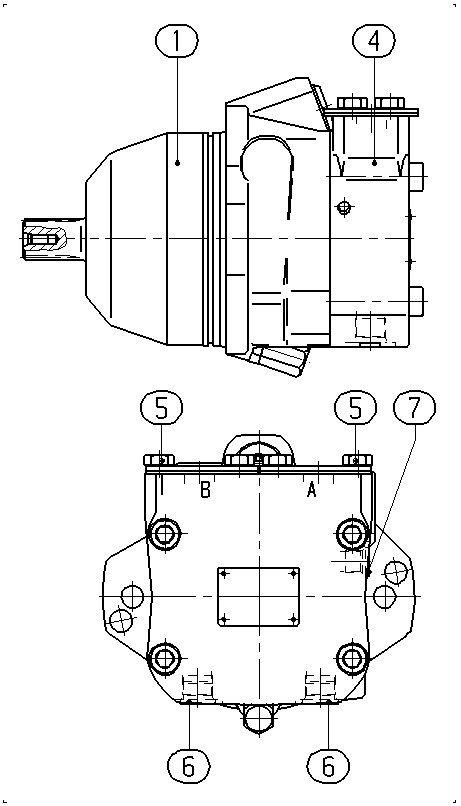

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910987507 | BASE UNIT Assembly parts list →L | 1 | ||
| R910987572 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902400577 | FLANGE COVER | 2 | ||
| R909153338 | SCREW PLUG | 2 | ||
| R909153371 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control hydraulic without switching time | HZ |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Flange ports according to A and B laterally, Fastening thread UNF ISO 6162 same side | 60N00 |
| Valves | Without valve | 0 |
