Unit · REGULATOR

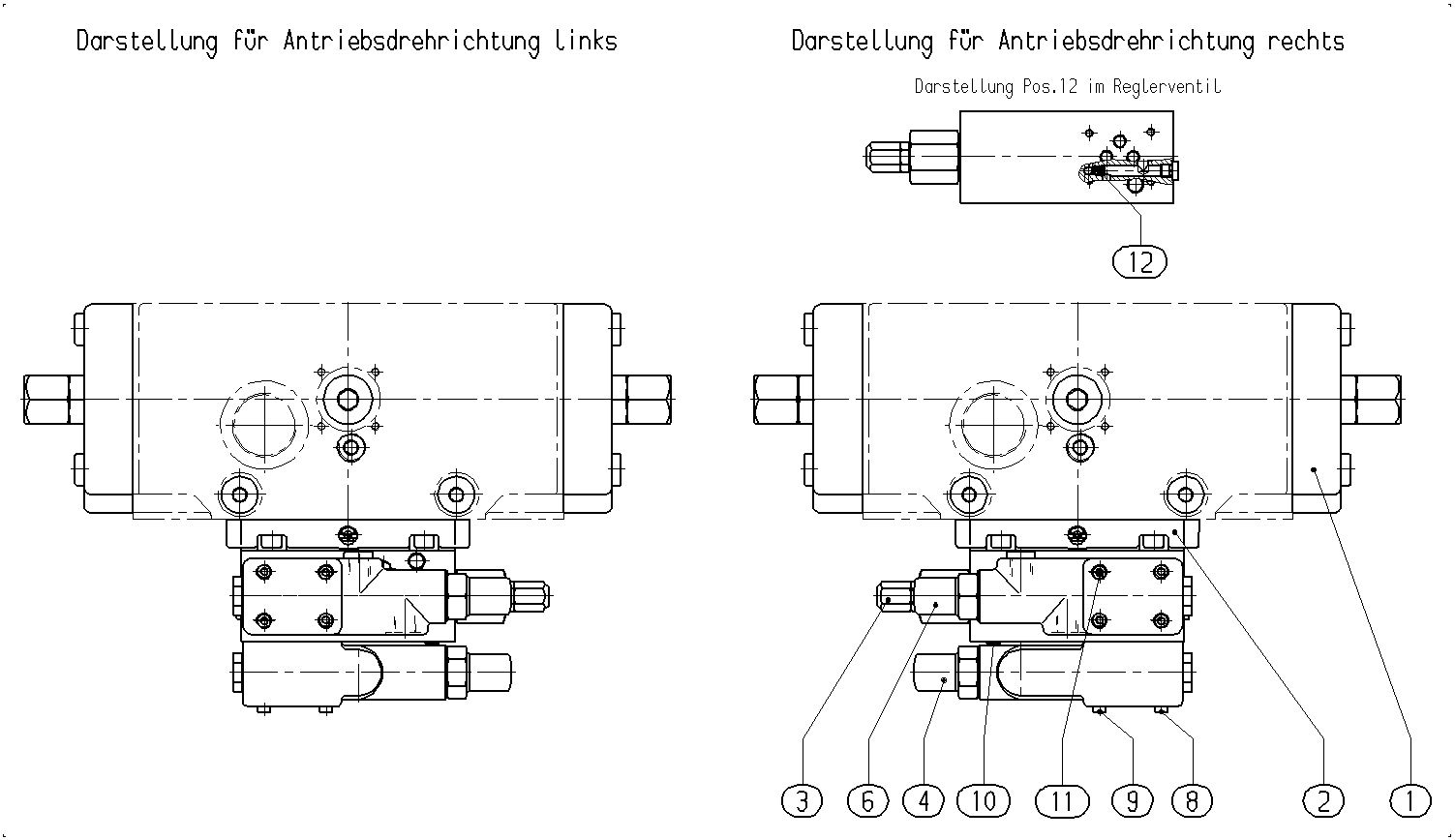

R A4VSO250/355LR2DF /30R910990676
Control Bosch Rexroth series A4VSO, type code RA4VSO250/355LR2DF/30, material number R910990676. Nominal size: NG 355. Axial piston unit (Variable swashplate design): nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (A4VS). Control device: power controller with hyperbolic characteristic curve; basic setting Vg max (LR).
- Number
- R910990676
- Type code
- R A4VSO250/355LR2DF /30
- Group
- A4VSO 250
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910976994 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910977194 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902402988 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983010 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910979962 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983247 | SOCKET HEAD CAP SCREW | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 2 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156493 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit (Variable swashplate design) | Nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | A4VS |
| Size (NG) | 355 | 355 |
| Control device | Power controller with hyperbolic characteristic curve; basic setting Vg max | LR |
| mechanically adjustable | 2 | |
| with pressure control | D | |
| with flow control | F | |
| 30 | 30 |
