Unit · BASE UNIT

G A4VSG 355 K/22L-PPB10K04R910991845

Base unit Bosch Rexroth series A4VSG, type code GA4VSG355K/22L-PPB10K04, material number R910991845. Nominal size: NG 355. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 101-2 (B) 1 in 15T 16/32DP (K04).

Number
R910991845
Type code
G A4VSG 355 K/22L-PPB10K04
Group
A4VSG 355
Edition
01/2021

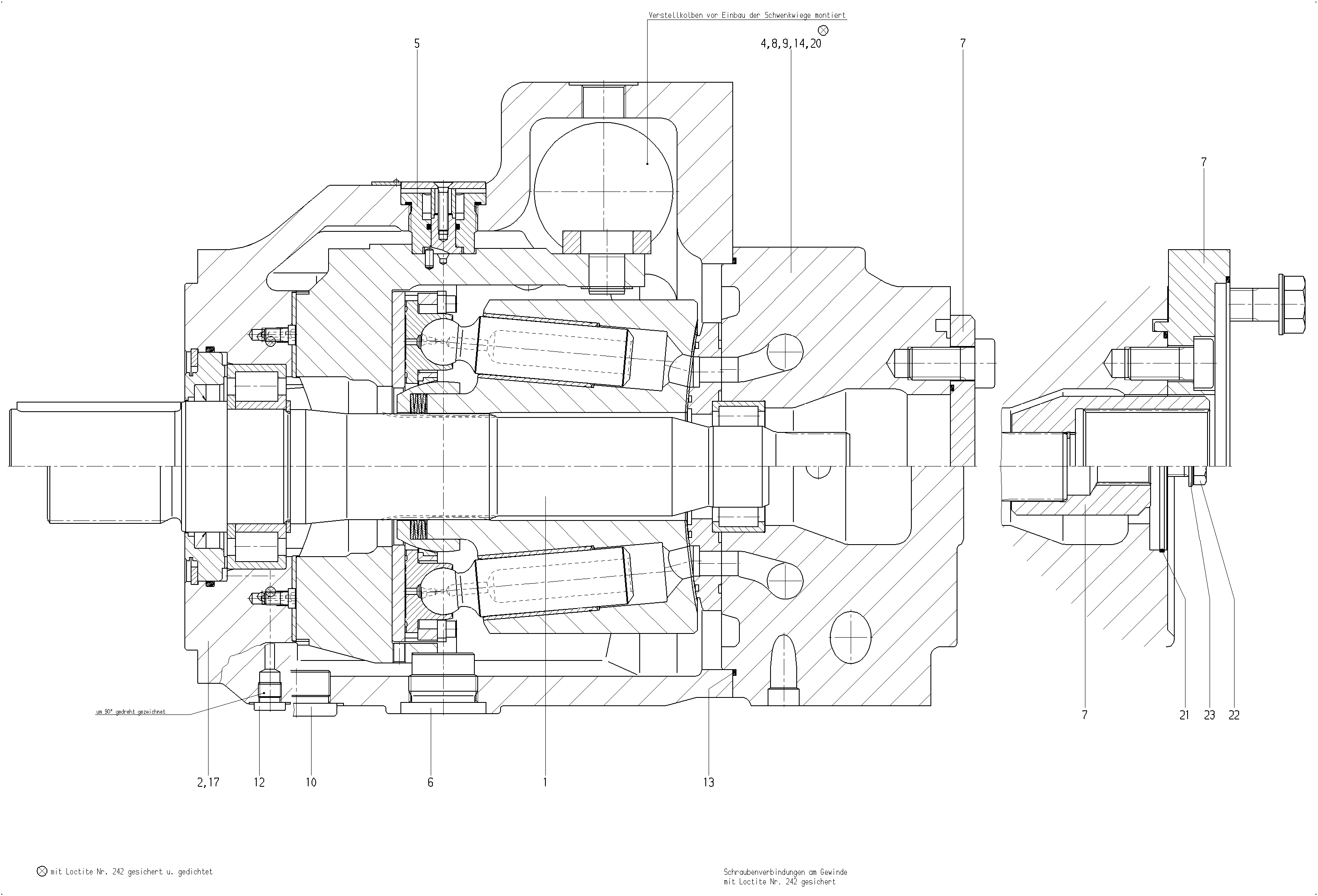

G A4VSG 355 K/22L-PPB10K04 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910960154ROTARY GROUP Assembly parts list →L1
R910999633CONNECTION PLATE Assembly parts list →L1
R910909629INDICATING DEVICE Assembly parts list →L1
R910909637STUD BOLT Assembly parts list →L1
R902497519SPLINED COUPLING1
R910924900SOCKET HEAD CAP SCREW4
R902572931SOCKET HEAD CAP SCREW4
R910941718SCREW PLUGD3
R909153815SCREW PLUG1
R910940894O-RINGD1
R902573014AXIAL SEALD1
R909831318DOUBLE BREAK-OFF PLUG2
R910834491THROTTLE SCREW1
R910384259O-RING1
R910104906HEXAGON SCREW2
R910186732WASHER2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 350 bar, maximum pressureA4VS
Operating modePump, closed circuitG
Size (NG)355355
Direction of rotationViewed on drive shaft counter-clockwiseL
Drive shaftParallel keyed shaft DIN 6885P
Mounting flangeBased on ISO 3019-2 metric 4-holeB
Working portSAE flange ports A and B, located on same side, metric fastening thread10
Through-drive101-2 (B) 1 in 15T 16/32DPK04
