Unit · AXIAL-PISTON PUMP
PA4VSG355EO2/22L-PPB10K049NR910991936
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG355EO2/22L-PPB10K049N, material number R910991936. Nominal size: NG 355. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 101-2 (B) 1 in 15T 16/32DP (K04). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R910991936
- Type code
- PA4VSG355EO2/22L-PPB10K049N
- Group
- A4VSG 355
- Edition
- 01/2021

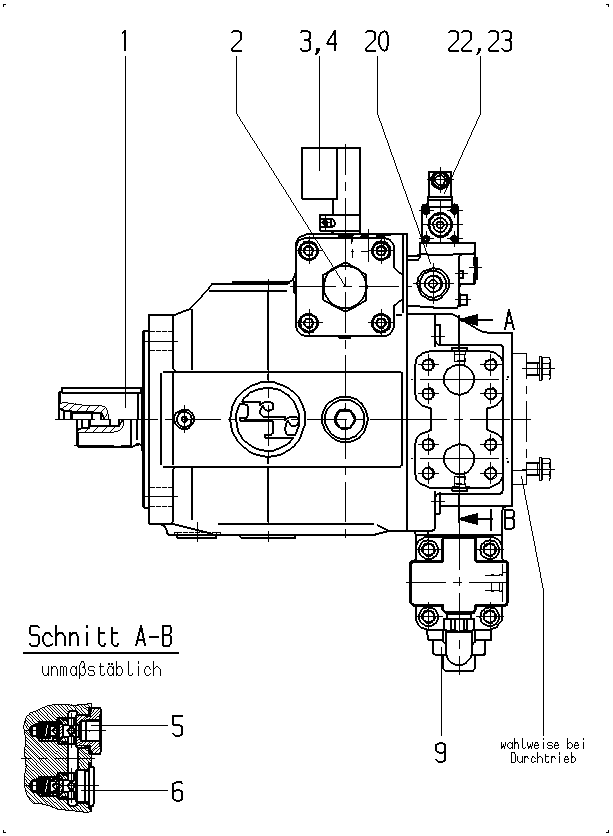

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910991845 | BASE UNIT Assembly parts list →L | 1 | ||
| R910960681 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901155 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910941006 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910991713 | VALVE MODULE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 355 | 355 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
