Unit · AXIAL-PISTON PUMP
AHA10VO100DFLR/31L-PSC11N00-SO527R910992681
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO100DFLR/31L-PSC11N00-SO527, material number R910992681. Nominal size: NG 100. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 527.
- Number
- R910992681
- Type code
- AHA10VO100DFLR/31L-PSC11N00-SO527
- Group
- A10VO 100
- Edition
- 06/2020

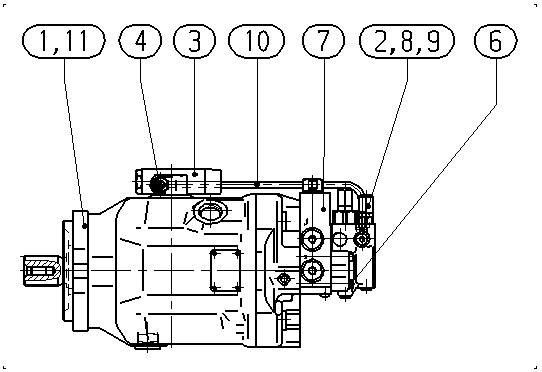

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910992534 | BASE UNIT Assembly parts list →L | 1 | ||
| R902493020 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932940 | ADAPTER Assembly parts list →L | 1 | ||
| R910120189 | SOCKET HEAD CAP SCREW | 4 | ||
| R910969719 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R902417268 | SEAL | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R910992683 | PIPING Assembly parts list →L | 1 | ||
| R910994270 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
