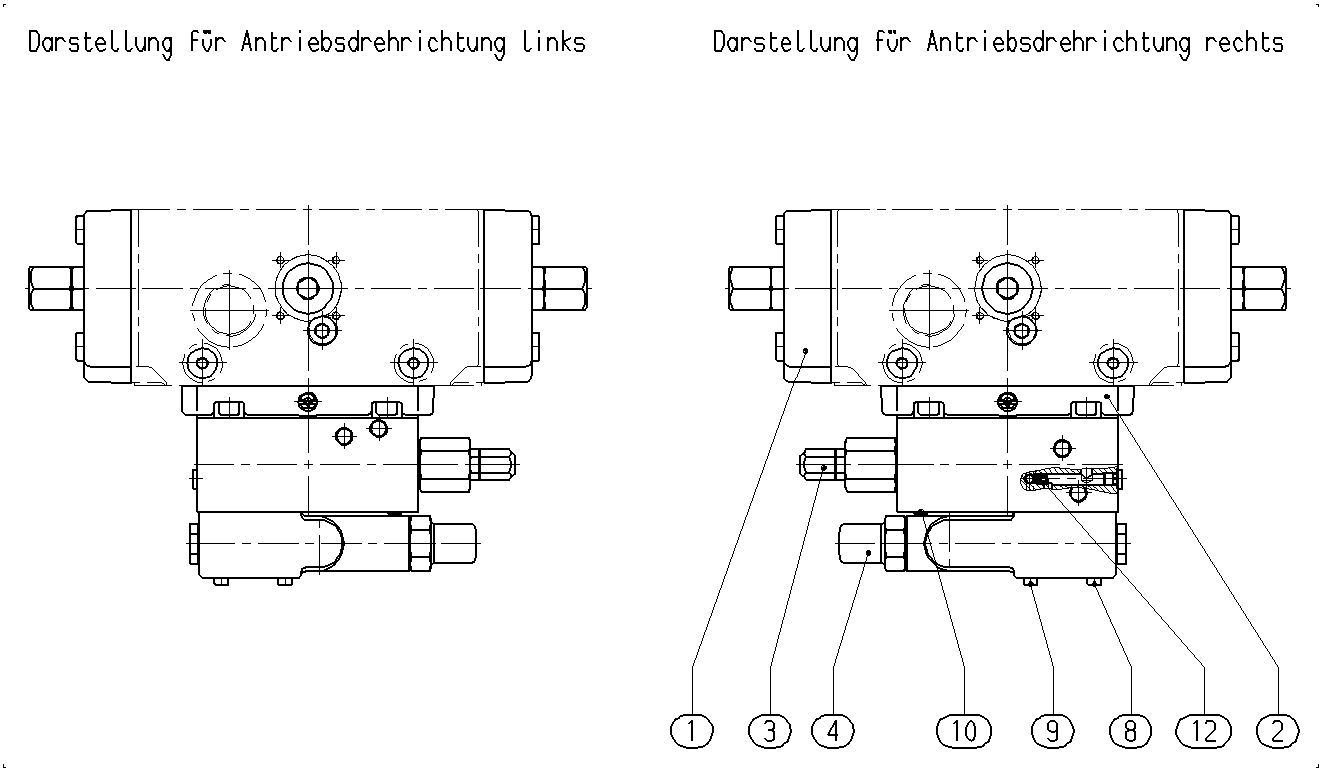

Unit · REGULATOR
R A4VS 125,180 LR2D /30R910999798
Control Bosch Rexroth series A4VS, type code RA4VS125,180LR2D/30, material number R910999798.
- Number
- R910999798
- Type code
- R A4VS 125,180 LR2D /30
- Group
- A4VS 125
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998064 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910977194 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910983108 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983010 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983247 | SOCKET HEAD CAP SCREW | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 2 | ||
| R910903670 | SOCKET HEAD CAP SCREW | 2 | ||
| R910836761 | NOZZLE | 1 |
