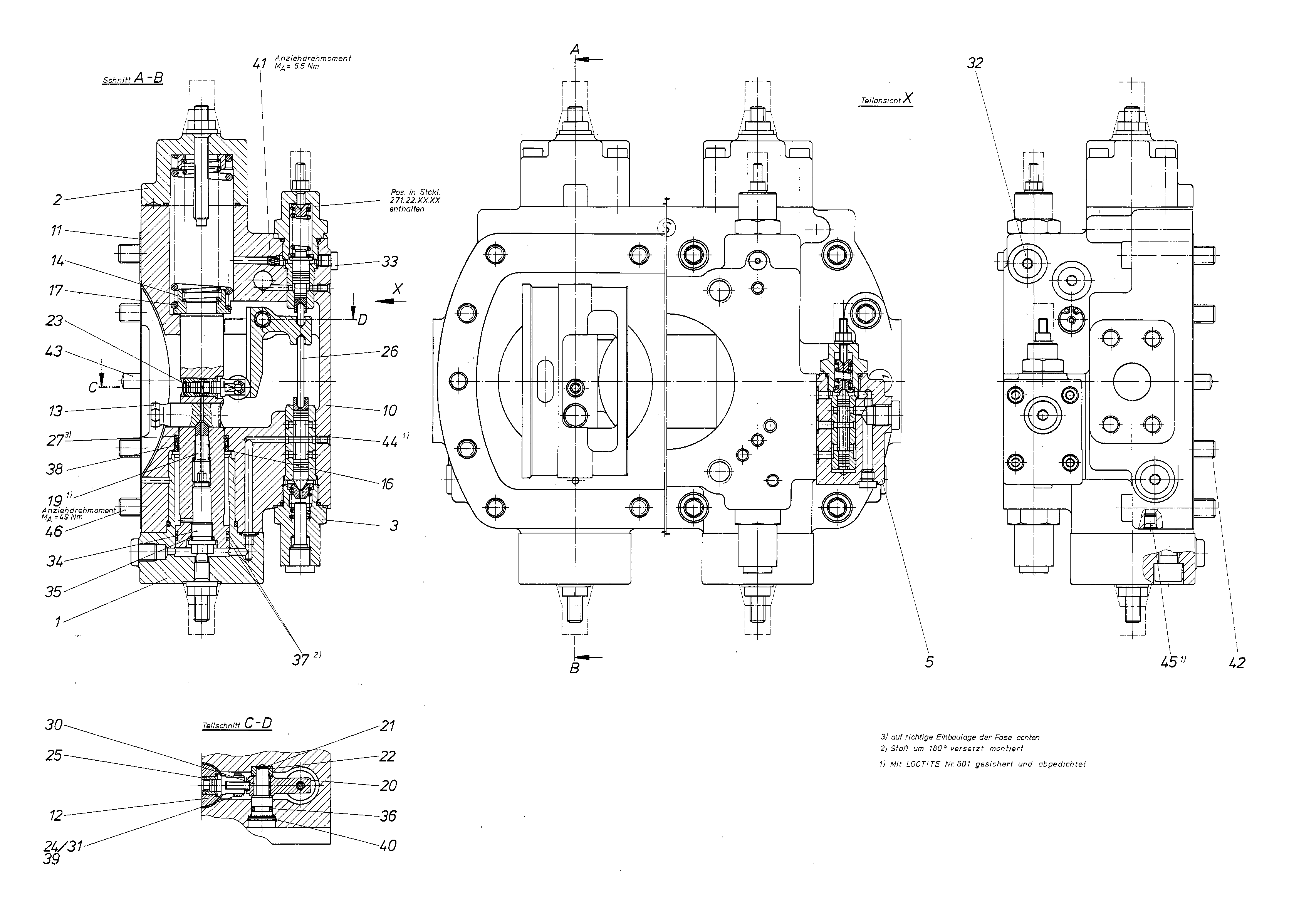

Assembly
CONTROLR909419029
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419031 | COVER Assembly parts list →L | 2 | ||
| R909419030 | COVER Assembly parts list →L | 2 | ||
| R909420345 | CONTROL PART Assembly parts list →L | 2 | ||
| R909418660 | SEQUENCE VALVE Assembly parts list →L | 2 | ||
| R909425847 | CONTROL HOUSING | 1 | ||
| R909650391 | SEALD | 1 | ||
| R909430985 | POSITIONING PISTON | 2 | ||
| R909425505 | POSITIONING STUD | 2 | ||
| R909412402 | SPRING DISK | 2 | ||
| R909422953 | RING | 2 | ||
| R909412452 | COMPRESSION SPRING | 2 | ||
| R909449056 | SETSCREW | 2 | ||
| R909419027 | LEVER | 2 | ||
| R909418641 | BEARING BOLT | 2 | ||
| R909412689 | BUSHING | 2 | ||
| R909420209 | MEASURING PISTON | 2 | ||
| R909411231 | BOLT | 2 | ||
| R909420208 | MEASURING BUSHING | 2 | ||
| R909419084 | PIN | 2 | ||
| R909422954 | WASHER | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 2 | ||
| R909151979 | SCREW PLUGD | 6 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156417 | SCREW PLUG | 2 | ||
| R909086729 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909156647 | R-RINGD | 4 | ||
| R909156541 | ROD SEALD | 2 | ||
| R909085810 | LOCKING WASHER | 4 | ||
| R909083382 | RETAINING RING | 2 | ||
| R909156492 | NOZZLE | 2 | ||
| R909083098 | SOCKET HEAD CAP SCREW | 8 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083093 | SOCKET HEAD CAP SCREW | 4 |
