Assembly

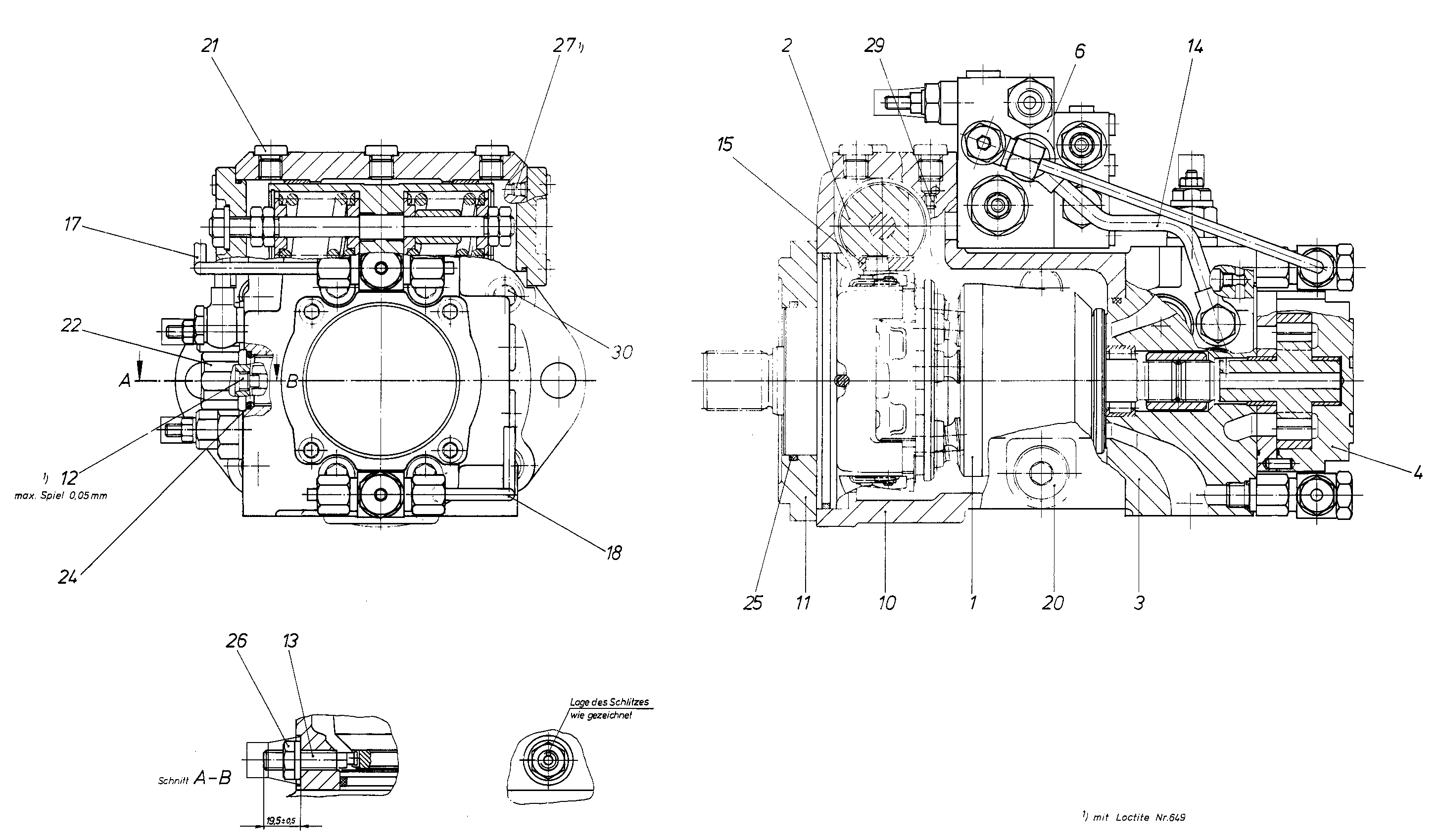

AXIAL-PISTON PUMPR909437929
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400314 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909429591 | CONTROL Assembly parts list →L | 1 | ||
| R909074384 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909079484 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909437976 | TORQUE-PRESSURE CONTROL VALVE Assembly parts list →L | 1 | ||
| R909405944 | HOUSING | 1 | ||
| R909069467 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909405757 | ECCENTRIC SCREW | 1 | ||
| R909437982 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R909437983 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909437984 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909078103 | LOCKING PIECE | 1 | ||
| 23 | R909153572 | SCREW PLUG | 1 | |
| R909083761 | O-RINGD | 1 | ||
| R909083821 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156496 | NOZZLE | 2 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 |
