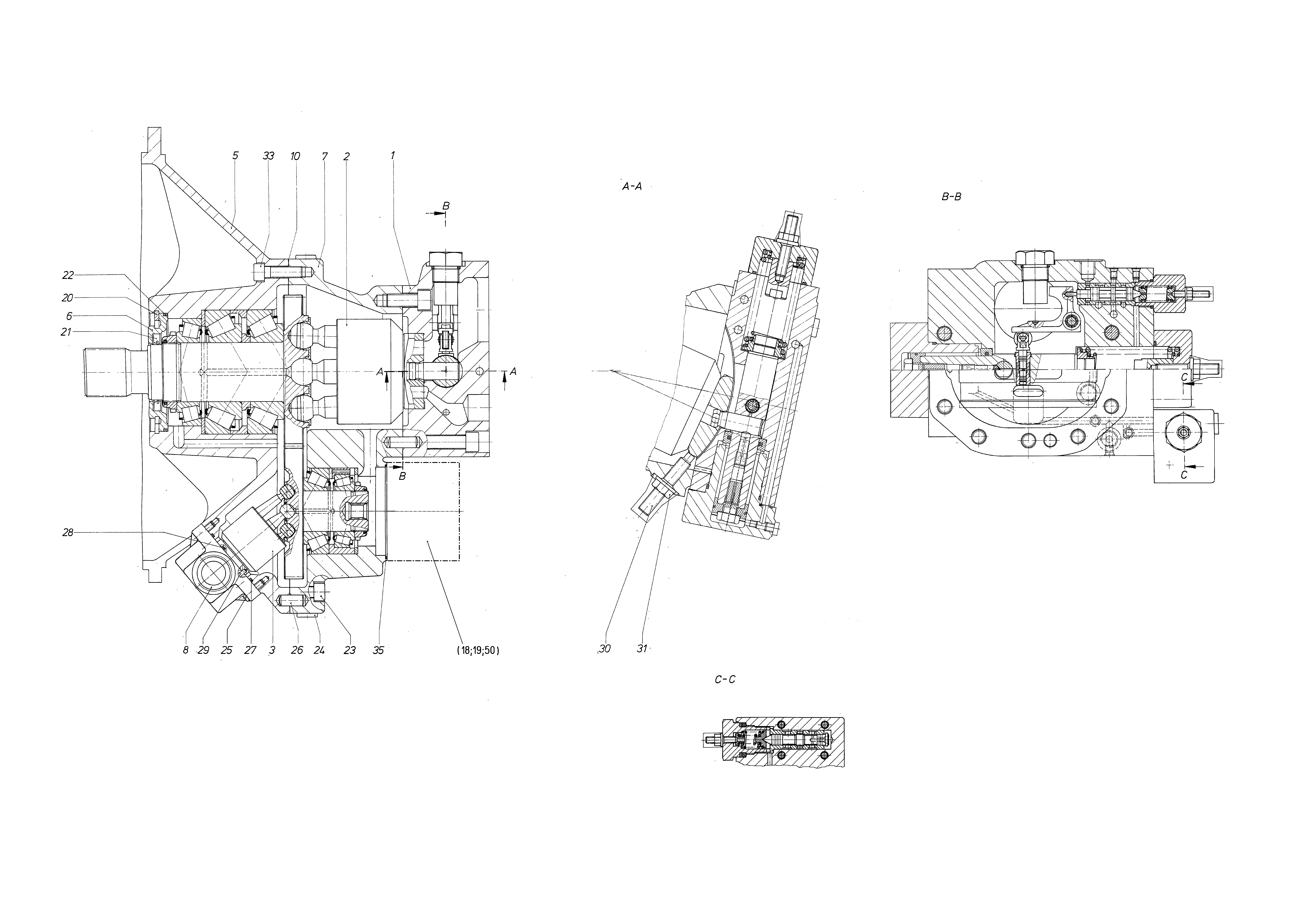

Unit · AXIAL-PISTON PUMP
A8VTO107LG1ES/60R1-NZG05K01-SR902073713
Axial piston pump Bosch Rexroth series A8VTO, type code A8VTO107LG1ES/60R1-NZG05K01-S, material number R902073713.
- Number
- R902073713
- Type code
- A8VTO107LG1ES/60R1-NZG05K01-S
- Group
- A8VTO 107
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902073716 | CONTROL Assembly parts list →L | 1 | ||
| R909434733 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902073889 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909439591 | GEAR HOUSING | 1 | ||
| R909416121 | LOCKING RINGD | 1 | ||
| R909435970 | ROTARY GROUP HOUSING | 1 | ||
| R909443698 | CONNECTION PLATE | 1 | ||
| R909650796 | SEALD | 1 | ||
| R909083419 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083829 | O-RINGD | 1 | ||
| R909083063 | SOCKET HEAD CAP SCREW | 6 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 6 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R902600656 | O-RINGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909084134 | STRAIGHT PIN | 1 | ||
| R909085976 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909083091 | SOCKET HEAD CAP SCREW | 6 | ||
| R909086720 | O-RINGD | 1 |
