Unit · AXIAL-PISTON MOTOR
AA10VEC60HZ/52WXXCATF.2409305R902414644
Axial piston motor Bosch Rexroth series A10VM, type code AA10VEC60HZ/52WXXCATF.2409305, material number R902414644. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Control devices: two-point control hydraulic without switching time (HZ). Direction of rotation: viewed on drive shaft bi-directional (W). Mounting flange: special flange; 2 hole (F).
- Number
- R902414644
- Type code
- AA10VEC60HZ/52WXXCATF.2409305
- Group
- A10VEC 60
- Edition
- 06/2020

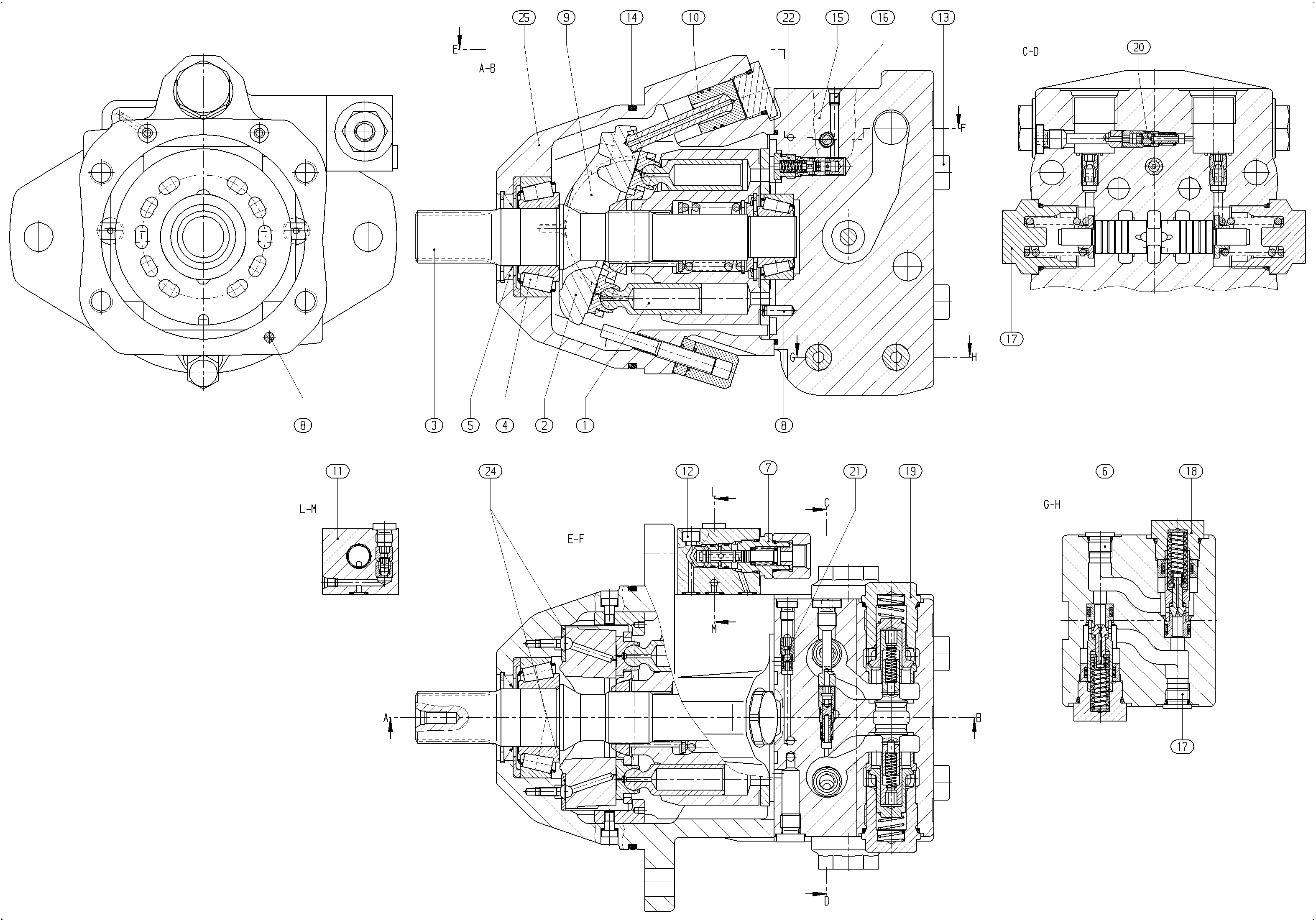

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910989422 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910988665 | SWASH PLATE | 1 | ||
| R902413419 | DRIVE SHAFT | 1 | ||
| R910989899 | BEARING SET | 1 | ||
| R910989963 | SEAL KIT | 1 | ||
| R910989947 | SEAL KIT | 1 | ||
| R902426124 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902414642 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902414640 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 4 | ||
| R910990054 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601553 | O-RING | 1 | ||
| R910989973 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910989972 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910984781 | BRAKE VALVE Assembly parts list →L | 1 | ||
| R910984812 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902038539 | CHECK VALVE | 2 | ||
| R902407296 | VALVE | 1 | ||
| R902423170 | SHUTTLE VALVE | 1 | ||
| R902400712 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| 23 | R910989977 | SCREW PLUG | 1 | |
| R902414743 | BEARING SHELL PAIR | 1 | ||
| R902414043 | MOTOR HOUSING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 60 | 60 |
| Control devices | Two-point control hydraulic without switching time | HZ |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Mounting flange | Special flange; 2 hole | F |
