Unit · AXIAL-PISTON PUMP

AA10VO85EK2DS/53L-VUC11N00P-S2289R902455898

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85EK2DS/53L-VUC11N00P-S2289, material number R902455898. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with controller cut-off (load sensing) U = 24 V (EK2DS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2289.

Number
R902455898
Type code
AA10VO85EK2DS/53L-VUC11N00P-S2289
Group
A10VO 85
Edition
06/2020

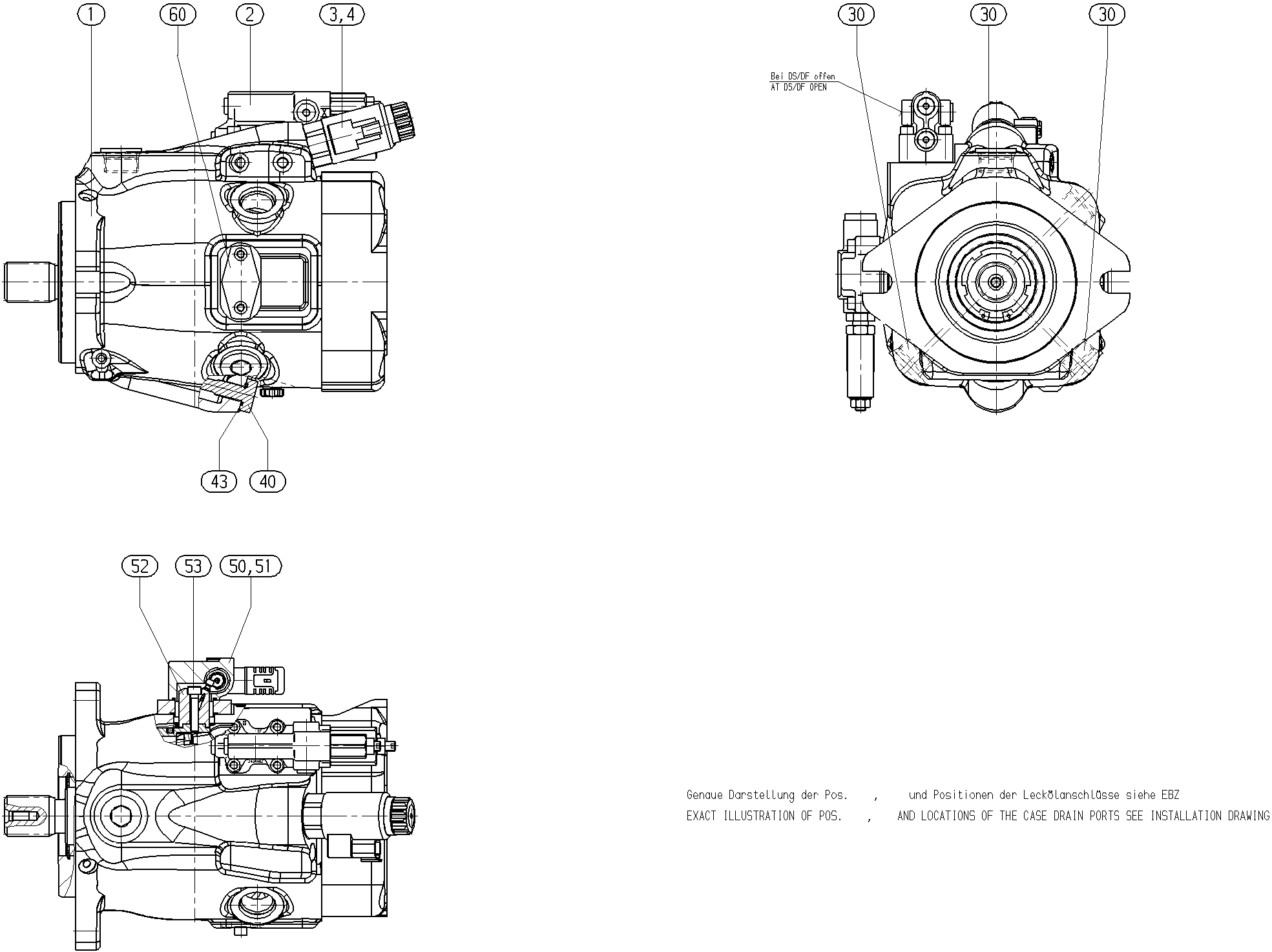

AA10VO85EK2DS/53L-VUC11N00P-S2289 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902455881BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902438428CONTROL VALVE Assembly parts list →L1
R902455036ADJUSTING PIECE Assembly parts list →L1
R910967351SCREW PLUG3
R902429967STOP SCREW1
R910919314O-RING1
R910986163VALVE1
R910109312SOCKET HEAD CAP SCREW2
R902423611CARRIER1
R910109339SOCKET HEAD CAP SCREW1
R902151719FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)8585
Control devicepressure and flow control with controller cut-off (load sensing) U = 24 VEK2DS
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 16
