AL A10V O85EK2DS/53L-VUC11N00P -S2257R902459100

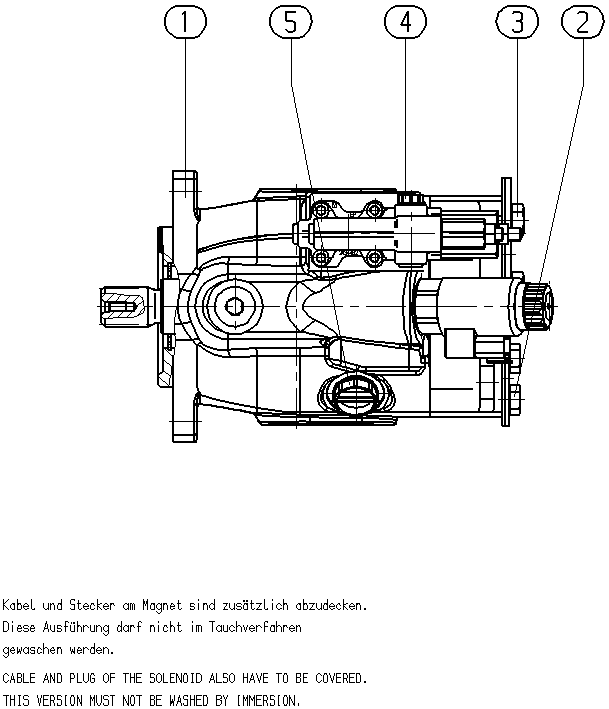

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85EK2DS/53L-VUC11N00P-S2257, material number R902459100. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with controller cut-off (load sensing) U = 24 V (EK2DS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 2257.
