Unit · AXIAL-PISTON PUMP
P A4VSG1000 HS4 /30R-PPH10K349FR902486549
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG1000HS4/30R-PPH10K349F, material number R902486549. Nominal size: NG 1000. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 160, 4-hole 50x2x24x9g (K34). Valves: SDVB valve block mounted (9). Filtration: filter mounted in the boost circuit (F).
- Number
- R902486549
- Type code
- P A4VSG1000 HS4 /30R-PPH10K349F
- Group
- A4VSG 1000
- Edition
- 07/2020

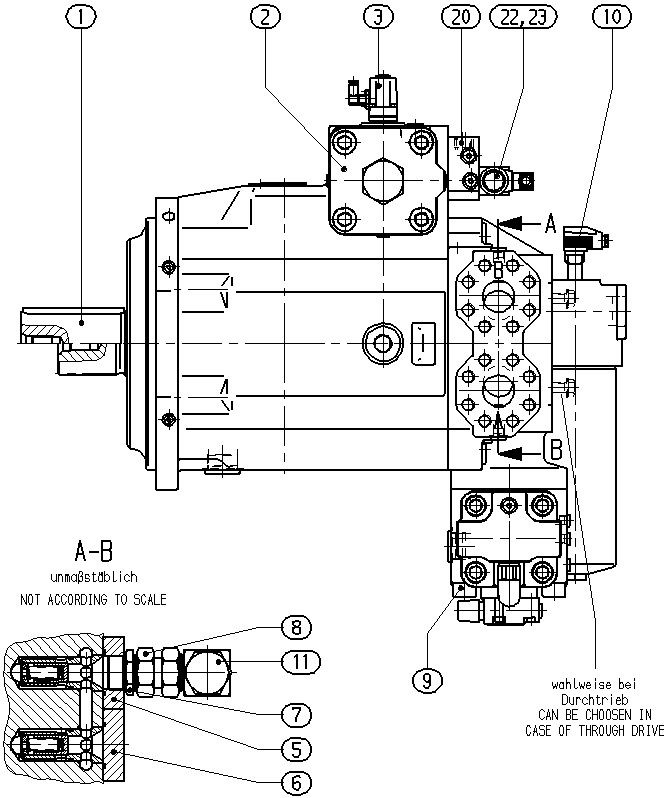

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902486845 | BASE UNIT Assembly parts list →L | 1 | ||
| R902475371 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422923 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910963731 | VALVE MOUNTING KIT | 1 | ||
| R910963732 | VALVE MOUNTING KIT | 1 | ||
| R910796654 | THREADED FASTENER | 1 | ||
| R910984777 | THREADED FASTENER | 1 | ||
| R910964071 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910968070 | FILTER Assembly parts list →L | 1 | ||
| R910903367 | THREADED FASTENER | 1 | ||
| R902445997 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902437418 | VALVE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R909831383 | GUARD PLUG | 1 | |
| 65 | R902602207 | SEAL SCREW | 1 | |
| 71 | R902430610 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602012 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 1000 | 1000 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 160, 4-hole 50x2x24x9g | K34 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Filter mounted in the boost circuit | F |
