Unit · AXIAL-PISTON PUMP
2A4VO56SRDS-SRDS/1*G*R909422110
Axial piston pump Bosch Rexroth series A4VO, type code 2A4VO56SRDS-SRDS/1*G*, material number R909422110.
- Number
- R909422110
- Type code
- 2A4VO56SRDS-SRDS/1*G*
- Group
- A4VO 56
- Edition
- 06/2020

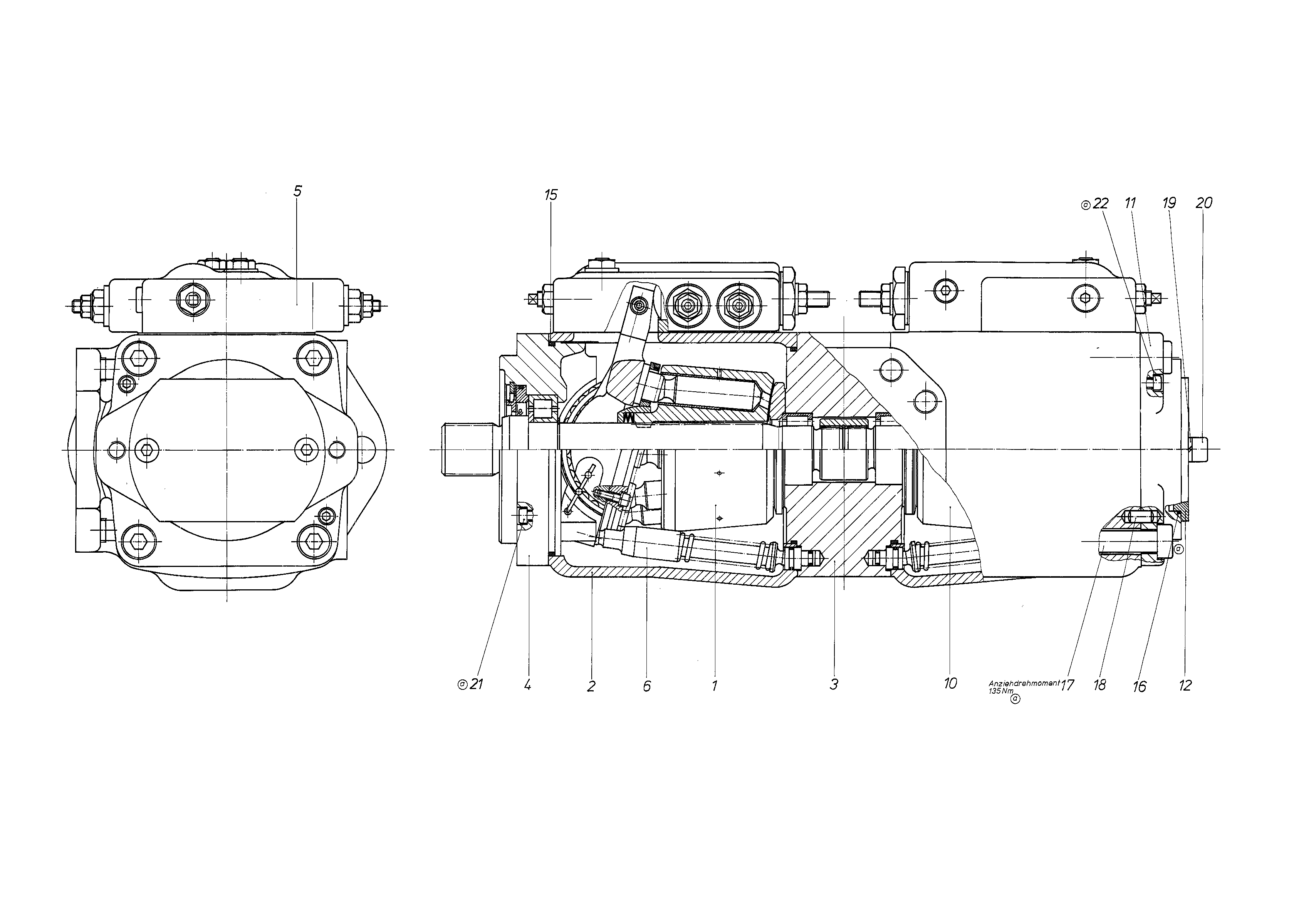

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909410130 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909416218 | HOUSING | 2 | ||
| 3 | R909422104 | CONNECTION PLATE Assembly parts list →L | 1 | |
| R909413679 | FLANGE Assembly parts list →L | 1 | ||
| 5 | R909408969 | REGULATOR Assembly parts list →L | 2 | |
| R909410227 | CONTROL Assembly parts list →L | 4 | ||
| R909410231 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 11 | R909413680 | FLANGE Assembly parts list →L | 1 | |
| R909404793 | SEALING COVER | 1 | ||
| R909085366 | O-RINGD | 2 | ||
| R909086720 | O-RINGD | 1 | ||
| 17 | R909156810 | SOCKET HEAD CAP SCREW | 8 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| R909083251 | SPRING LOCK WASHER | 2 | ||
| R909083057 | SOCKET HEAD CAP SCREW | 2 | ||
| 21 | R909083021 | SOCKET HEAD CAP SCREW | 2 | |
| 22 | R909083019 | SOCKET HEAD CAP SCREW | 2 |
