Unit · AXIAL-PISTON PUMP
A4FO22/31RR909442095
Axial piston pump Bosch Rexroth series A4FO, type code A4FO22/31R, material number R909442095. Nominal size: NG 22. Axial piston unit: swashplate design, fixed displacement (A4F). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R).
- Number
- R909442095
- Type code
- A4FO22/31R
- Group
- A4FO 22
- Edition
- 06/2020

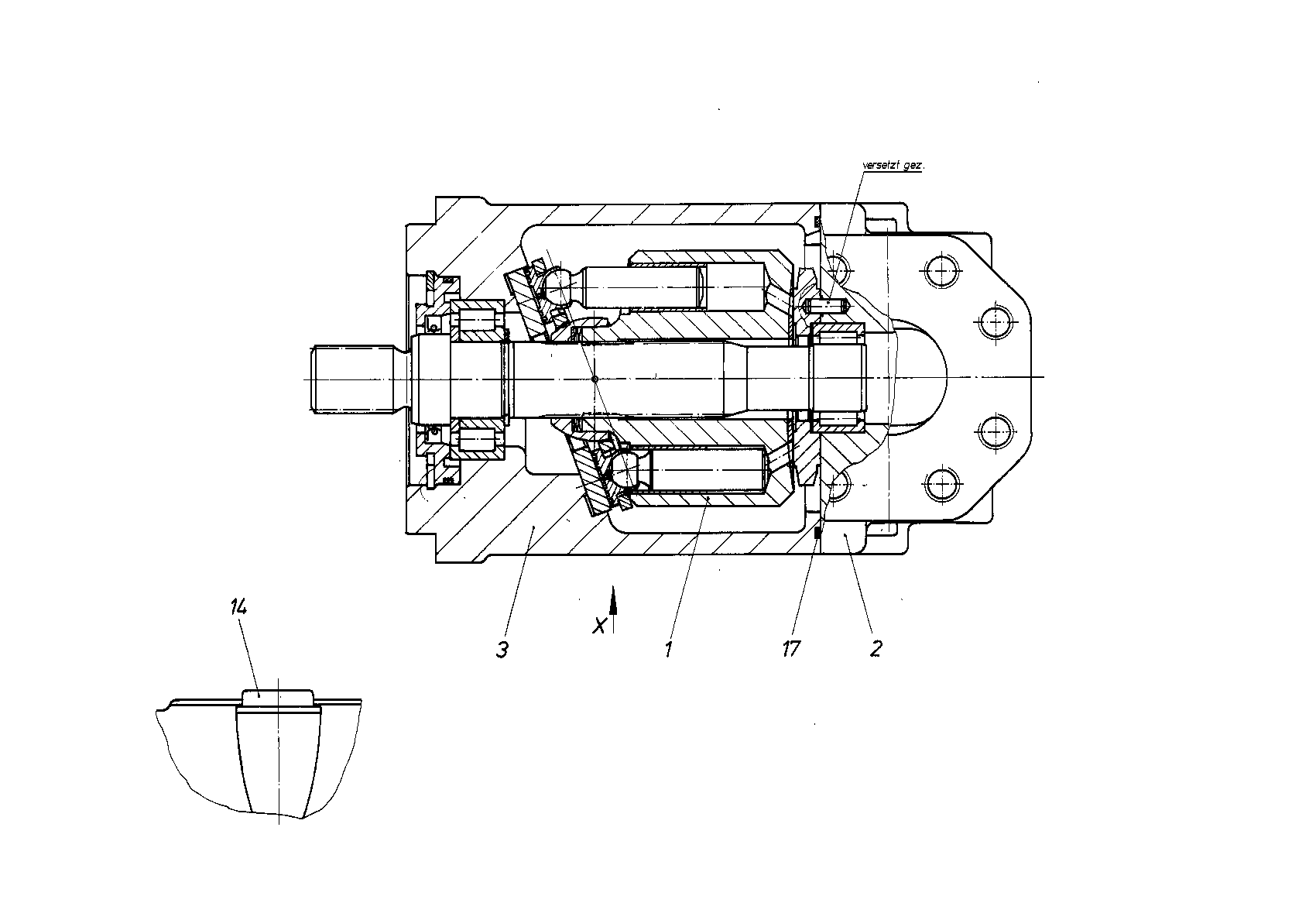

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195121 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909442092 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909444928 | HOUSING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909154589 | O-RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed displacement | A4F |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 22 | 22 |
| Direction of rotation | Viewed on drive shaft | R |
