Unit · AXIAL-PISTON PUMP
AA11VG50HW1/11R-PSC60F002SR909442116
Axial piston pump Bosch Rexroth series A11VO, type code AA11VG50HW1/11R-PSC60F002S, material number R909442116. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C).
- Number
- R909442116
- Type code
- AA11VG50HW1/11R-PSC60F002S
- Group
- A11VG 50
- Edition
- 06/2020

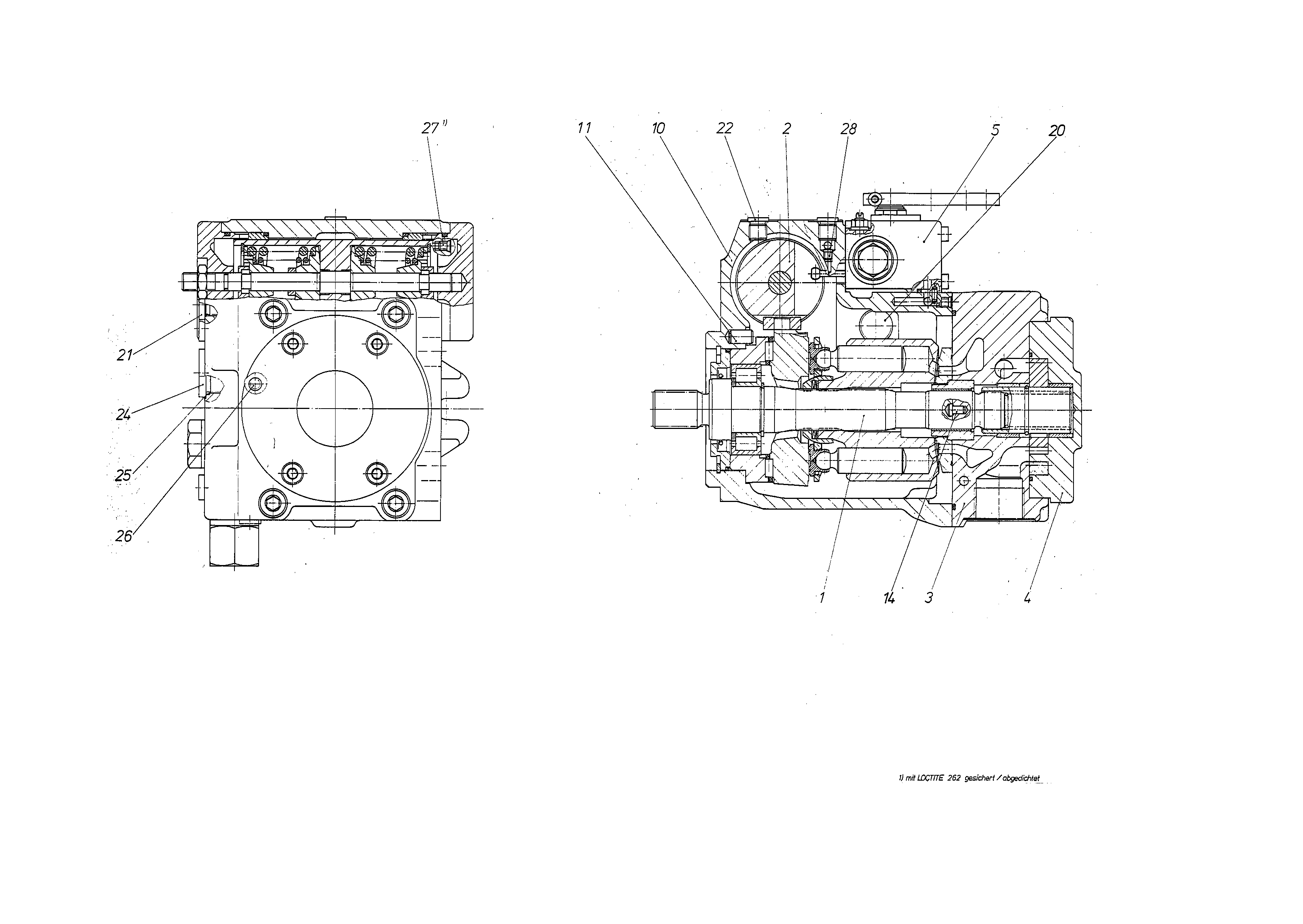

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429854 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437420 | CONTROL Assembly parts list →L | 1 | ||
| R909441076 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902080171 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909427744 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909440578 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
