Unit · BASE UNIT
BASE UNITR902560618
Base unit Bosch Rexroth, type code BASEUNIT, material number R902560618.
- Number
- R902560618
- Type code
- BASE UNIT
- Group
- BASE UNIT
- Edition
- 06/2020

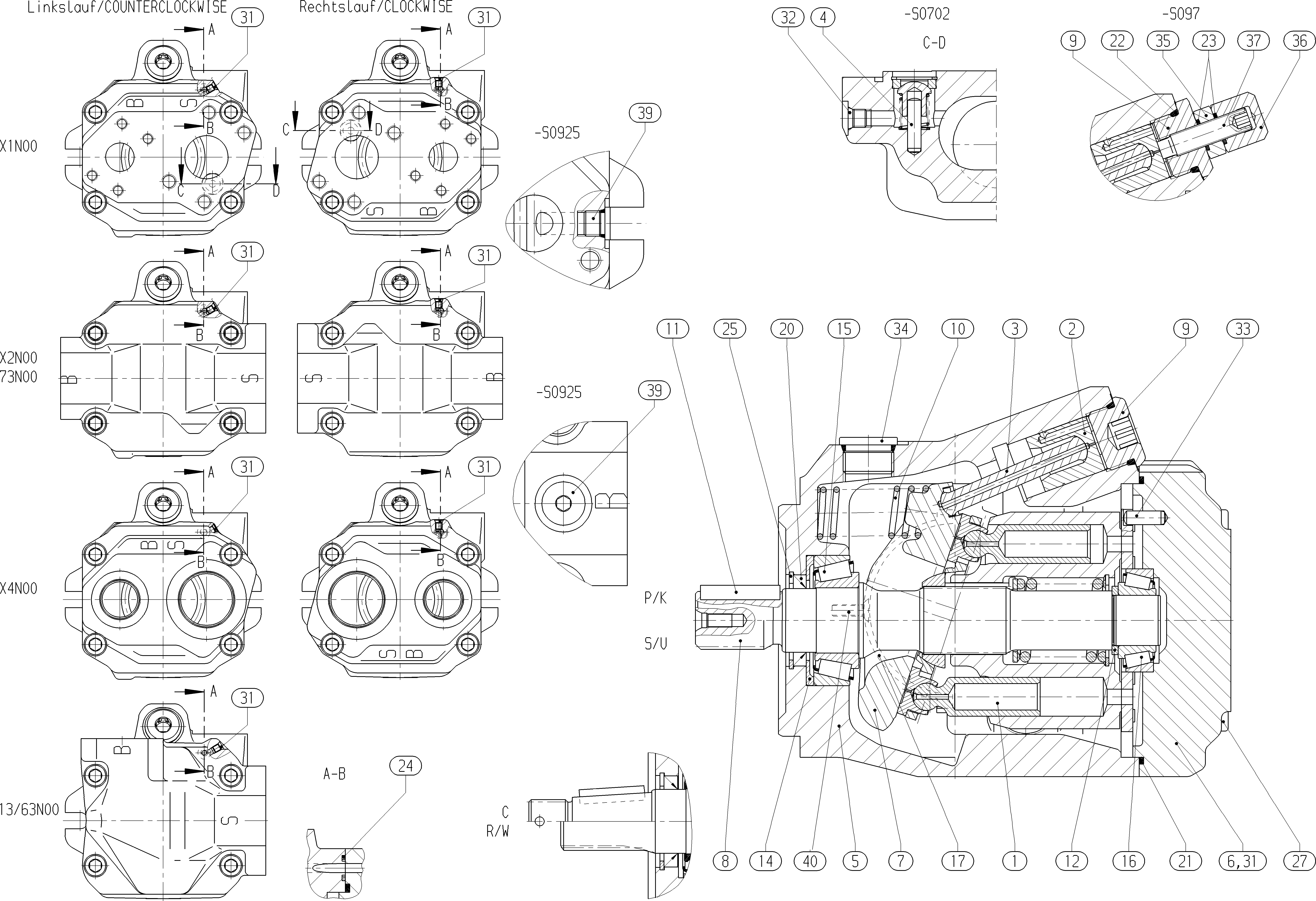

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453901 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902456349 | PUMP HOUSING | 1 | ||
| R902479967 | CONNECTION PLATE | 1 | ||
| R902459250 | SWASH PLATE | 1 | ||
| R910992268 | DRIVE SHAFT | 1 | ||
| R902447646 | SCREW PLUG | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 |
